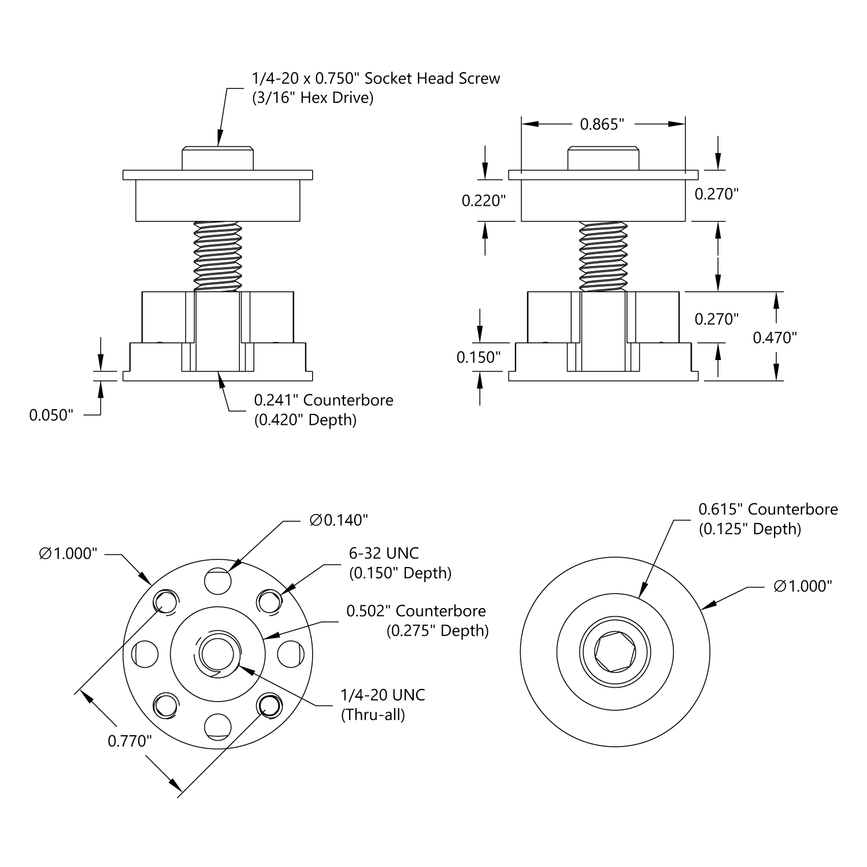

Drive Wheel Adaptor A, allows you to attach our line of 2.975” and 4.90” wheels to gears, pulleys, sprockets or other like pattern components. To attach a shaft or gear motor simply choose a set screw or clamping hub and bolt the adaptor to the hub as shown below. Use 6-32 socket head machine screws with this bracket (sold separately).
Material | Aluminum |
---|---|
Weight | 0.69 oz (20g) per set |
