Standard Gripper Kit A

Compatible with standard size Hitec or Futaba servos (sold separately)
Compatible with standard size Hitec or Futaba servos (sold separately)
  • Compatible with standard size Hitec or Futaba servos (sold separately)
  • Shown with a can for scale
  • Wide grip! Grab items up to 4.20” wide
  • Shown above with a Large Screw Plate used as a back plate
  • With our 0.770” and  1.50” hub patterns incorporated into this gripper, the mounting possibilities are endless

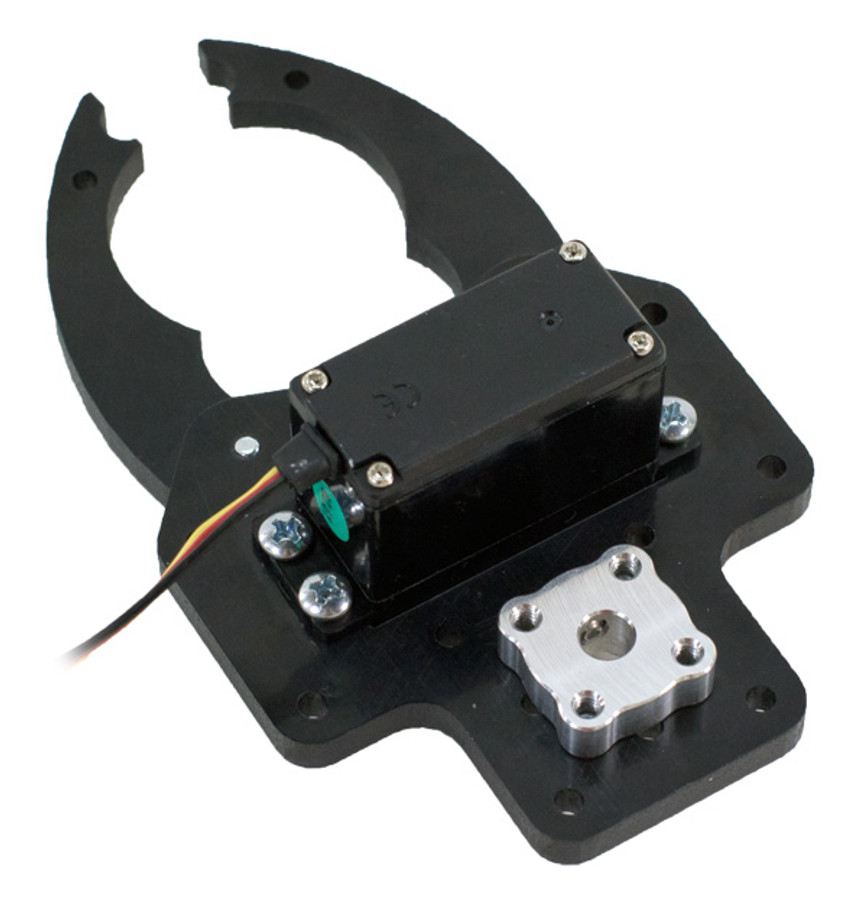

  • Shown with a set screw hub (not included) attached to the back plate
  • Easy assembly with just a Phillips Head Screwdriver
  • Mounts easily to our aluminum channel in various configurations
  • Sold in kit form - servo not included
  • Mount to a 1” tube using our Clamp Hub A
1 of 10

Be the first to review this product

Part
637094
637094
Status
In stock
This Product? Share It!

Details

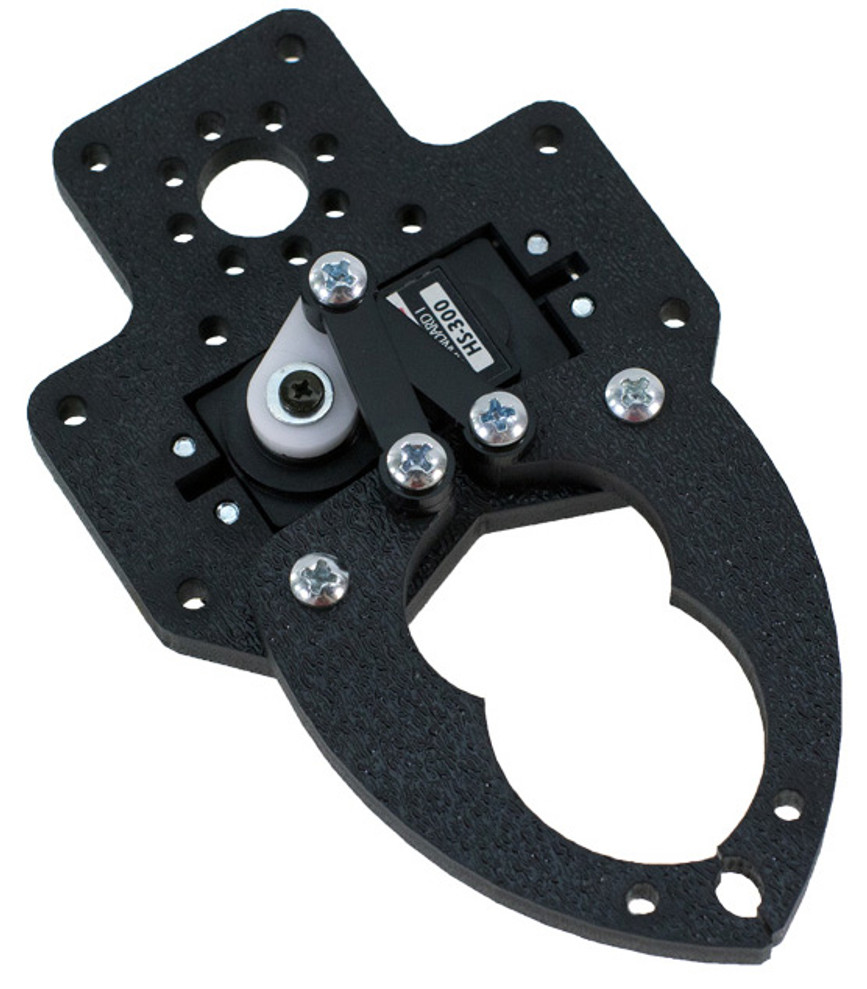

This gripper is a sleek and simple kit that is great for all kinds of robotic applications. The grippers have a maximum width of 4.20” and contoured design to help hold on to larger objects. By incorporating the Actobotics 0.770” hub pattern into the back plate you can easily attach nearly any Actobotics component to the assembled kit. Designed for use with any standard size Hitec or Futaba servo (servo not included). The kit is easy to assemble and requires only a Phillips Head Screwdriver. Watch our step by step assembly video for detailed instructions.

SPECS

637094 Schematic 2637094-Schematic-1


Dimensions 5.215" x 3"
Product Weight 1.632 oz (no servo)
Servo Spline Compatibility 24T (C1) or 25T (3F) standard spline
Servo Size Compatibility Designed for use with any standard size Hitec or Futaba servo
Servo Included No
