Servo-Driven Gripper Kit (Servo Included)
SKU:
$29.99

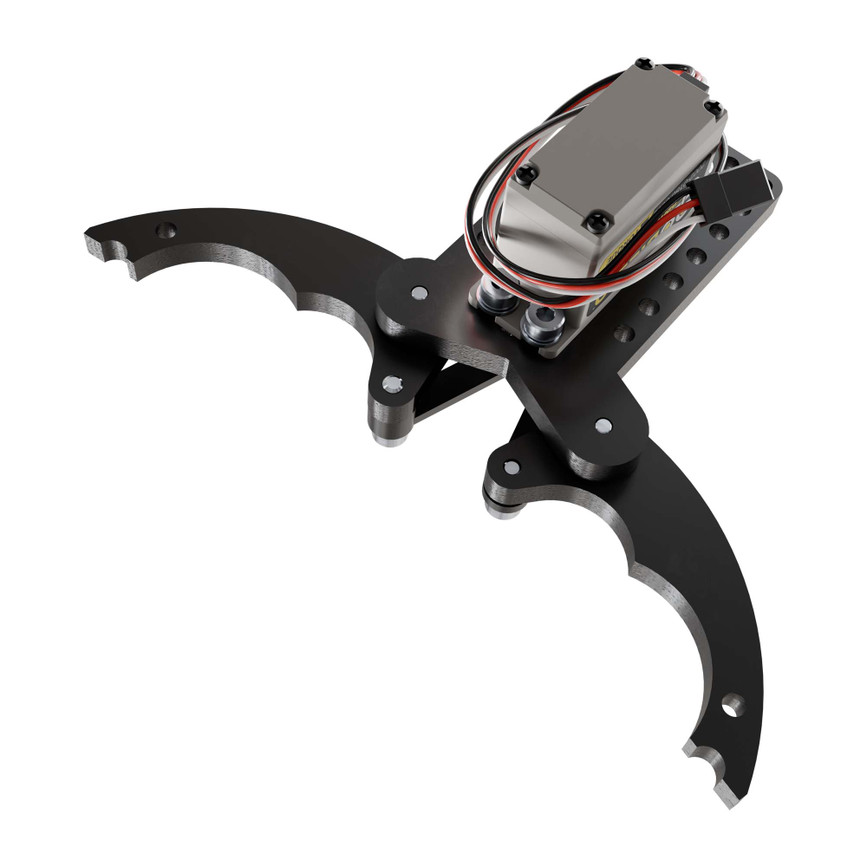

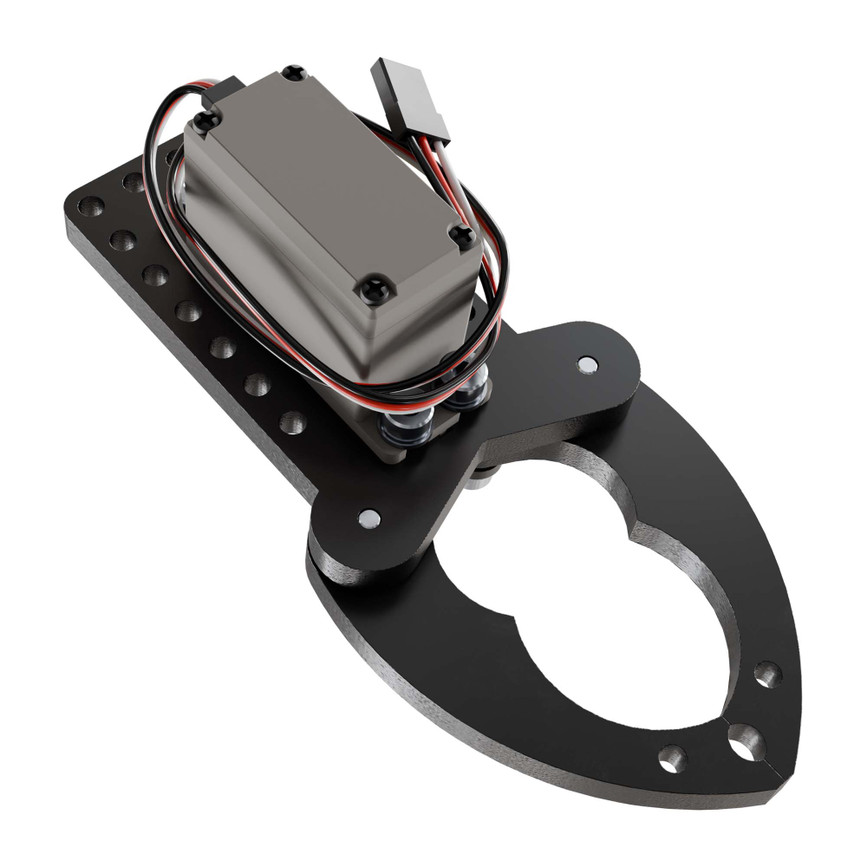

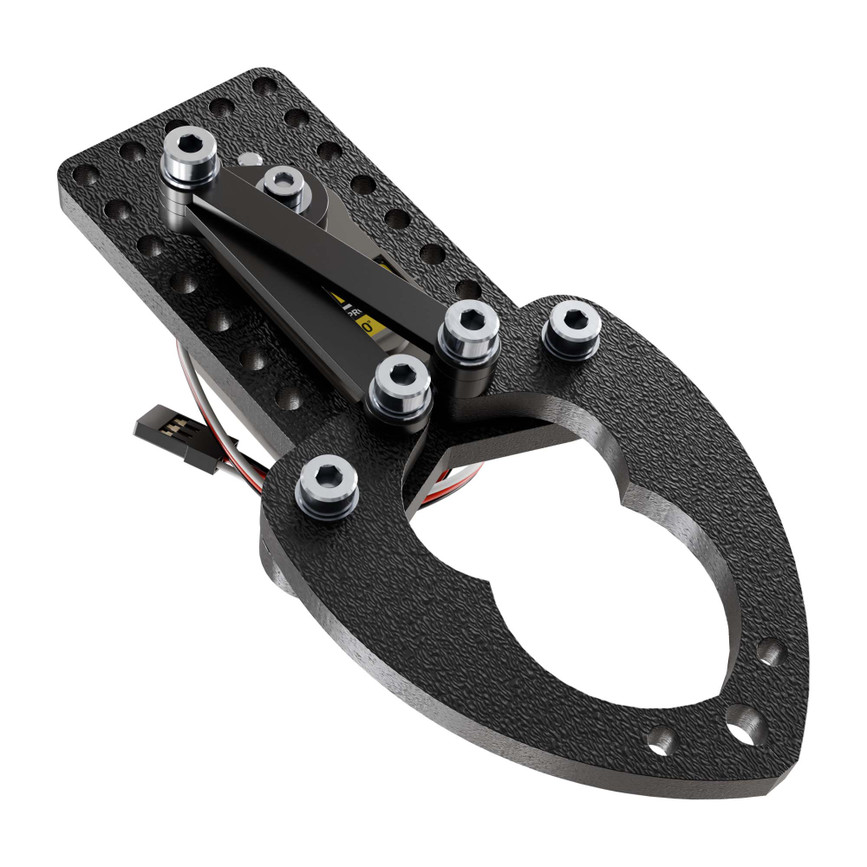

This gripper kit has jaws that rotate inward toward their target using linkages driven by the included Proton Torque Servo. The holes around the perimeter are on an 8mm grid so that you can easily fasten this kit to your goBILDA® creation!
Kit Contents:
| QTY | SKU | Name |
|---|---|---|
| 1 | 1131-0160-0071 | 6.0mm ABS Plastic Servo Mount for 3219-0002-0002 |
| 1 | 1131-0160-0072 | 6.0mm ABS Plastic Left Gripper for 3219-0002-0002 |
| 1 | 1131-0160-0073 | 6.0mm ABS Plastic Right Gripper for 3219-0002-0002 |
| 1 | 1131-0040-0005 | 4.0mm Acetal Plastic Left Linkage Spacer for 3219-0002-0002 |
| 1 | 1131-0024-0007 | 2.4mm Acetal Plastic Right Linkage for 3219-0002-0002 |
| 1 | 1131-0040-0004 | 4.0mm Acetal Plastic Servo Horn for 3219-0002-0002 |
| 1 | 1131-0024-0008 | 2.4mm Acetal Plastic Left Linkage for 3219-0002-0002 |
| 6 | 2800-0004-0010 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 10mm Length) |
| 3 | 2800-0004-0014 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 14mm Length) |
| 1 | 2801-0003-0008 | 3mm ID x 8mm OD Zinc-Plated Washer |
| 25 | 2801-0004-0008 | 2801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD) |
| 1 | 2002-0180-0002 | Proton Servo (Steel Gears, 180° Rotation, Torque Ratio) |
Downloads
Specs
| Weight | 101g (with Servo) |
|---|---|
| Servo Included | 2002-0180-0002 |
