X-Rail Screw Plate (2 pack)

1 of 6

Be the first to review this product

In stock
This Product? Share It!

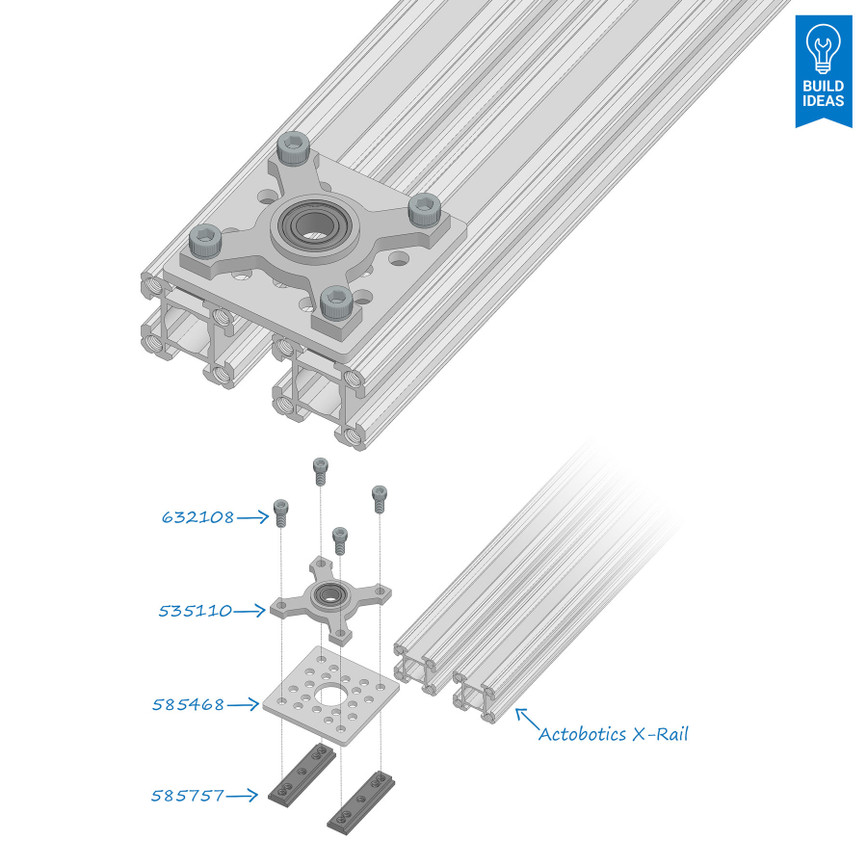

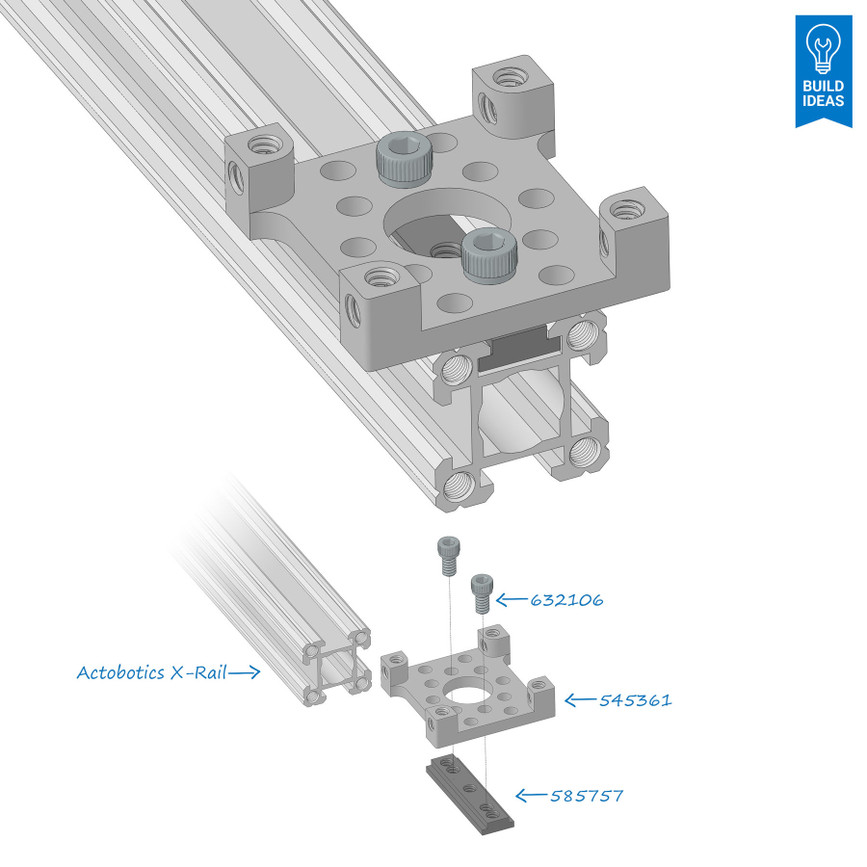

X-Rail Screw Plates are a longer version of the X-Rail Nuts.  When you want to attach an Actobotics component using the 0.770" or 1.50" (measuring 1.061" to align with the side) pattern, X-Rail Screw Plates provide more surface contact with the slot of the X-Rail when compared to the X-Rail Nuts.  These screw plates are able to move to any location along the X-Rail and lock into place when a part is fastened using 6-32 screws.

Please note: This is the direct replacement for the 585718 Dual X-Rail Mounts (2 pack).  The new version is made of steel for added strength and durability.


Product Weight 0.18 oz (each)
Material Steel
Finish Zinc Plated
Hole Pattern Compatibility 0.770" and 1.50"
