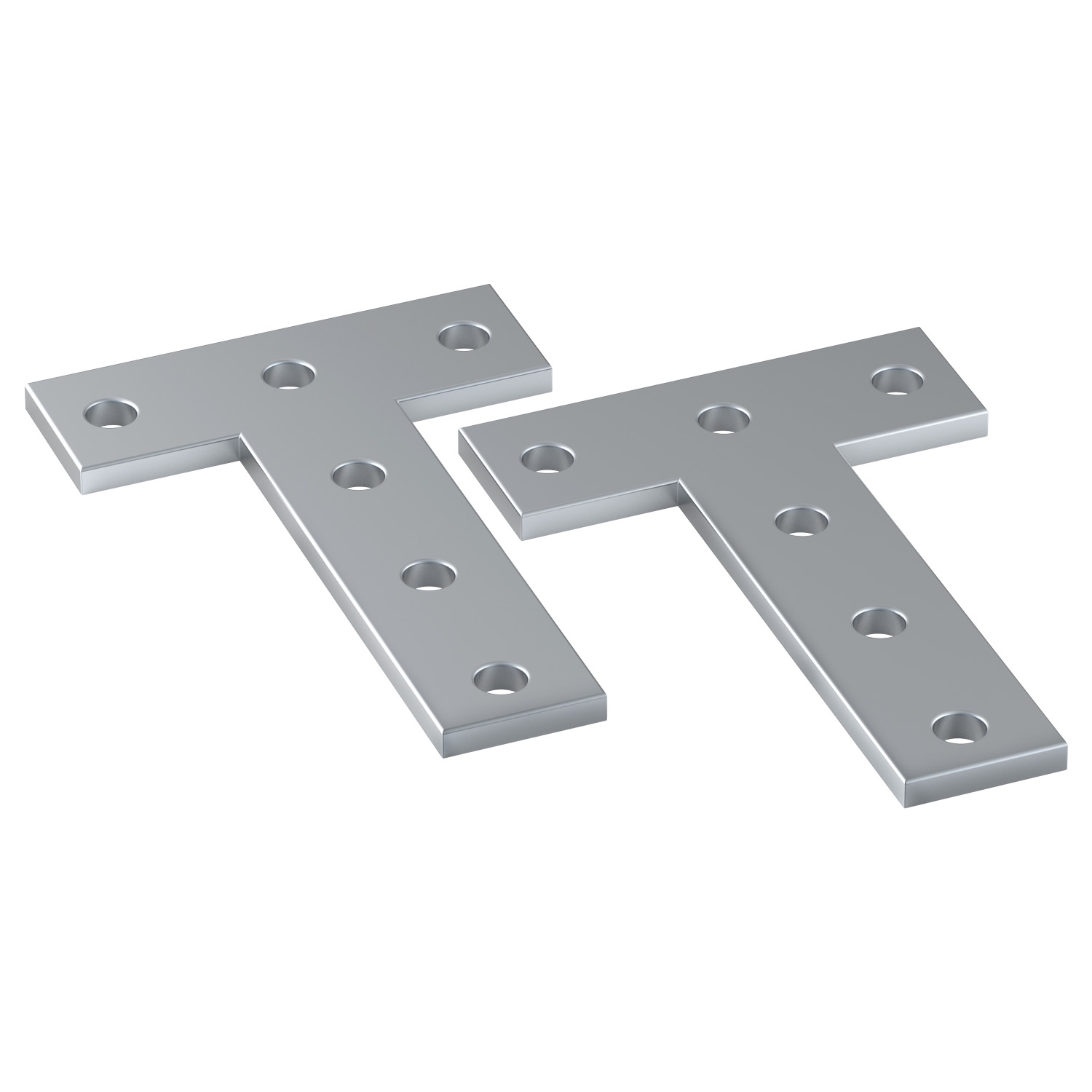

X-Rail T-Bracket (2 pack)

SKU: Build System: Actobotics
$1.99 / 2 Pack

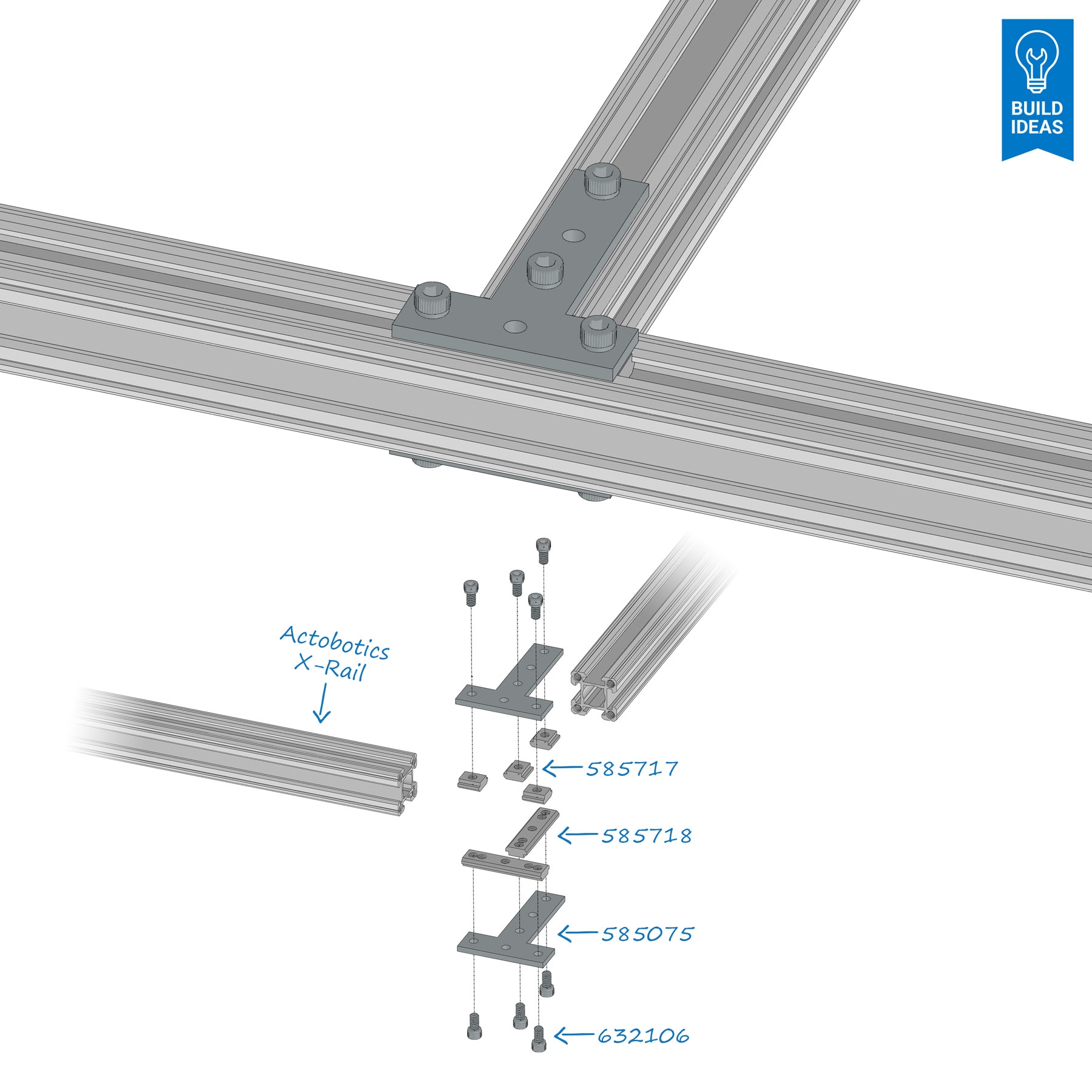

The X-Rail T-Bracket provides a simple way to make a T-joint with X-Rail.  The T-Brackets are constructed of zinc plated steel to provide excellent strength and corrosion resistance.  Clad a single side of the T-joint or for ultimate strength clad both sides.  The thru-holes allow you to pass 6-32 x 1/4" length screws through and into threaded X-Rail Mounts for a no-slip connection. Each plate has a series of holes to choose from and work well with the X-Rail Nuts or the X-Rail Screw Plates.



Material Steel
Weight 0.53 oz (15g) each
Finish Zinc Plated
