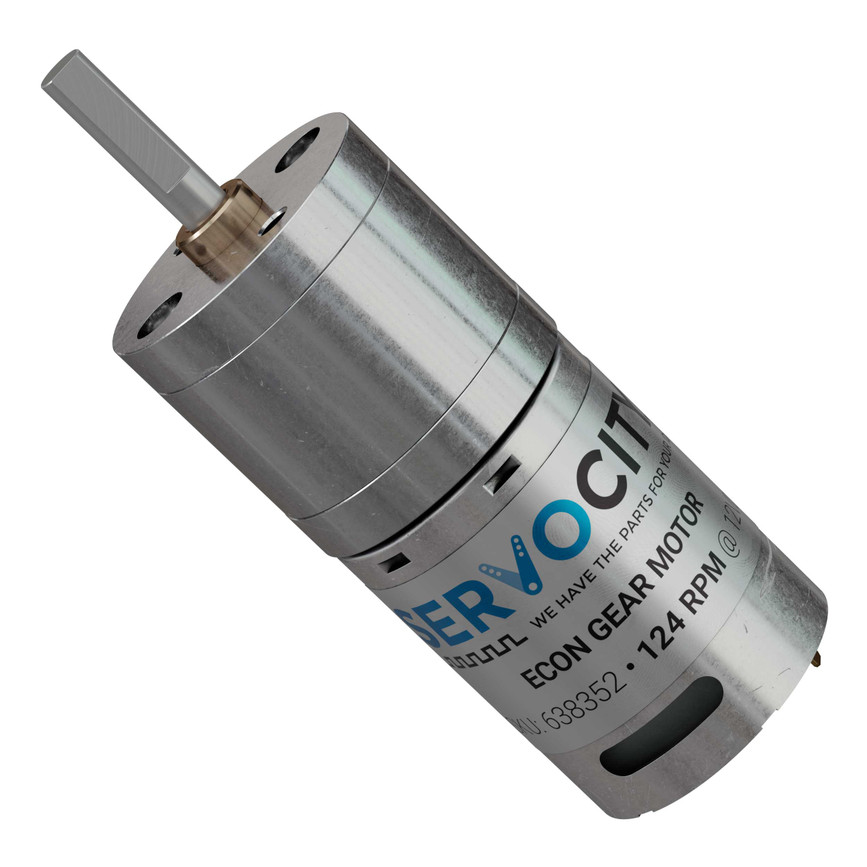

124 RPM Econ Gear Motor


Tech Tip

Stalling this gearmotor could cause gear damage.


Output Shaft Style D-shaft
Motor Type Brushed DC
Output Shaft Support Bushing
Gear Material Metal
Weight 3.25 oz (92g)
Voltage (Nominal) 12V
Speed (No Load @ 12VDC) 124 rpm
Current (No Load @ 12VDC) 0.10A
Current (Stall @ 12VDC) 3.8A
Torque (Stall @ 12VDC) 419 oz-in (30.20 kgf-cm)
Gearbox Style Straight Cut Spur
Connector Type Male Spade Terminal
Gear Ratio 78:1
