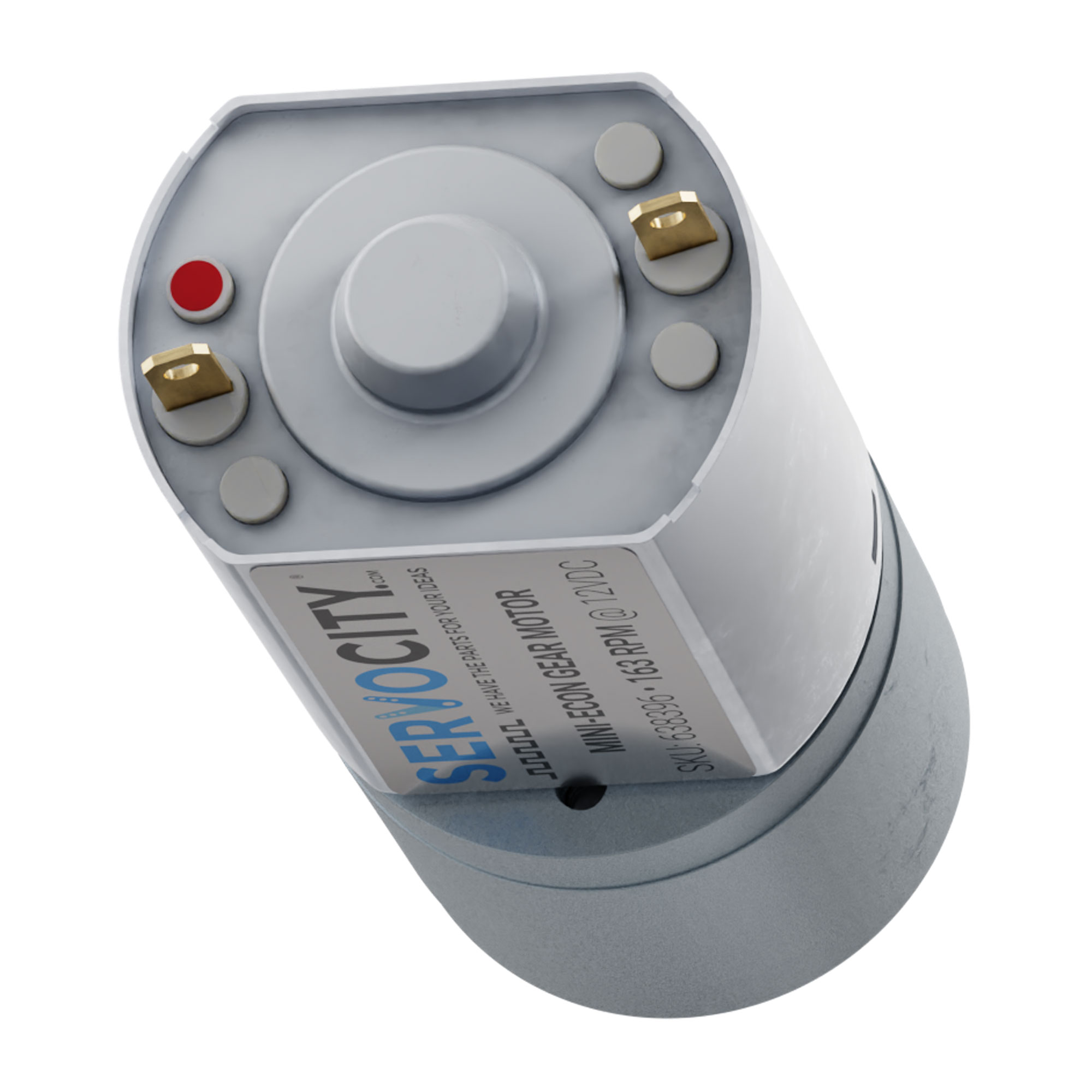

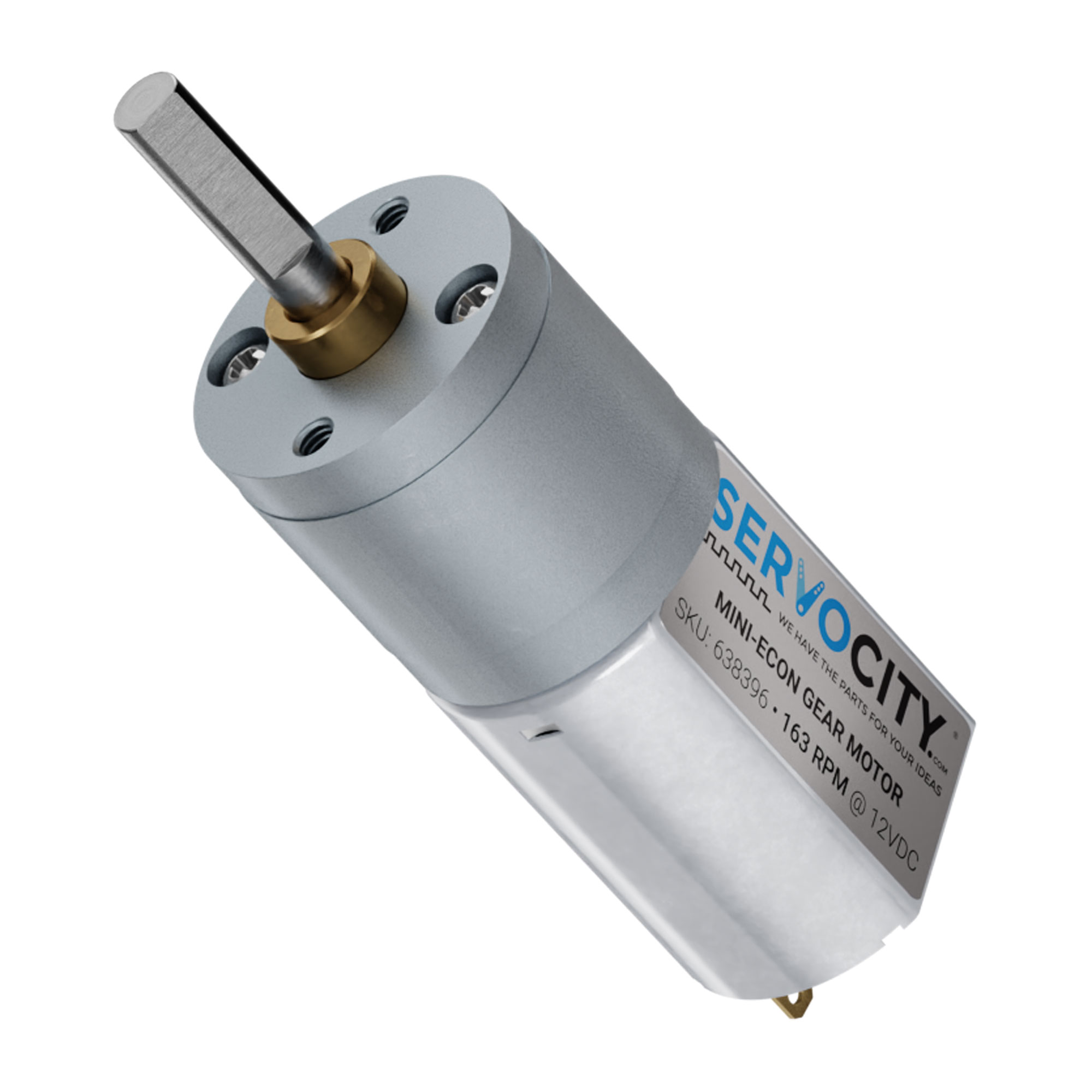

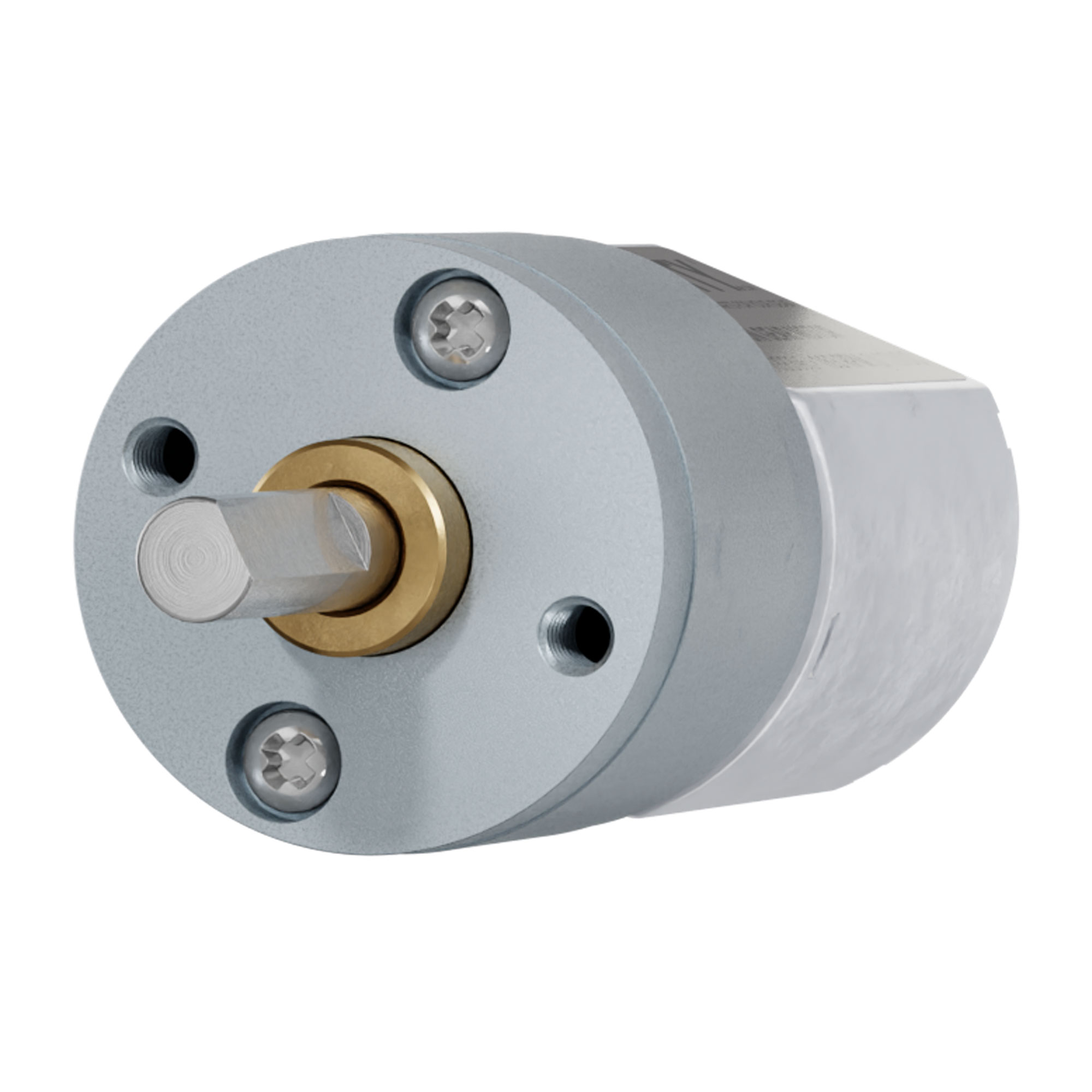

163 RPM Mini Econ Gear Motor

  • shown attached to clamping hub
  • shown attached to set screw hub
  • shown with a 4mm to 1/4” shaft coupler
  • we offer several 4mm bore gears that work with this motor
  • Less than $10! Shown next to $10 bill for scale
  • shown with Motor Mount F 555104
  • shown with Motor Mount F 555104
1 of 15

Be the first to review this product

Part
638396
638396
Status
In stock
This Product? Share It!
SPECS

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V -18V
Speed (No Load)* 163 rpm
Current (No Load)* 0.08A
Current (Max Load)* 0.3A
Current (Stall)* 1.4A
Torque (Stall)* 104 oz-in (7,489.6 kgf-cm)
Gear Ratio 78:1
Gear Material Metal
Gearbox Style Straight Cut Spur
Motor Type Brushed DC
Output Shaft Diameter 4mm (0.1575”)
Output Shaft Style D-shaft
Output Shaft Support Bushing
Electrical Connection Male Spade Terminal
Product Weight 1.55 oz
