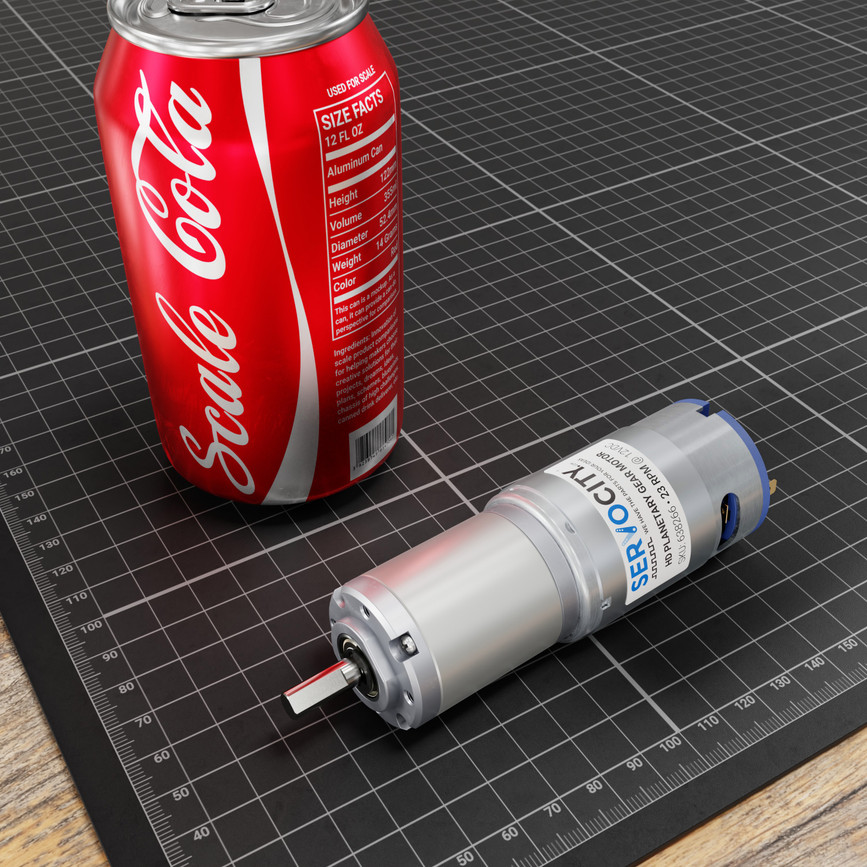

23 RPM HD Premium Planetary Gear Motor

SKU:
$39.99

This 23 RPM brushed HD Premium Planetary Gear Motor packages a planetary gearbox and a 6mm D-shaft to drive your project.

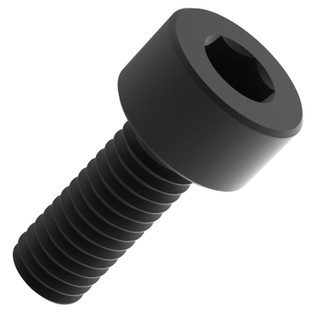

You can use its M3 threaded holes to fasten it to your project with M3 screws. Its 32mm gearbox diameter also provides for implementation with the use of 32mm bore clamping mounts.

Tech Tip

Stalling this gearmotor could cause gear damage.

Attachments

Mounting

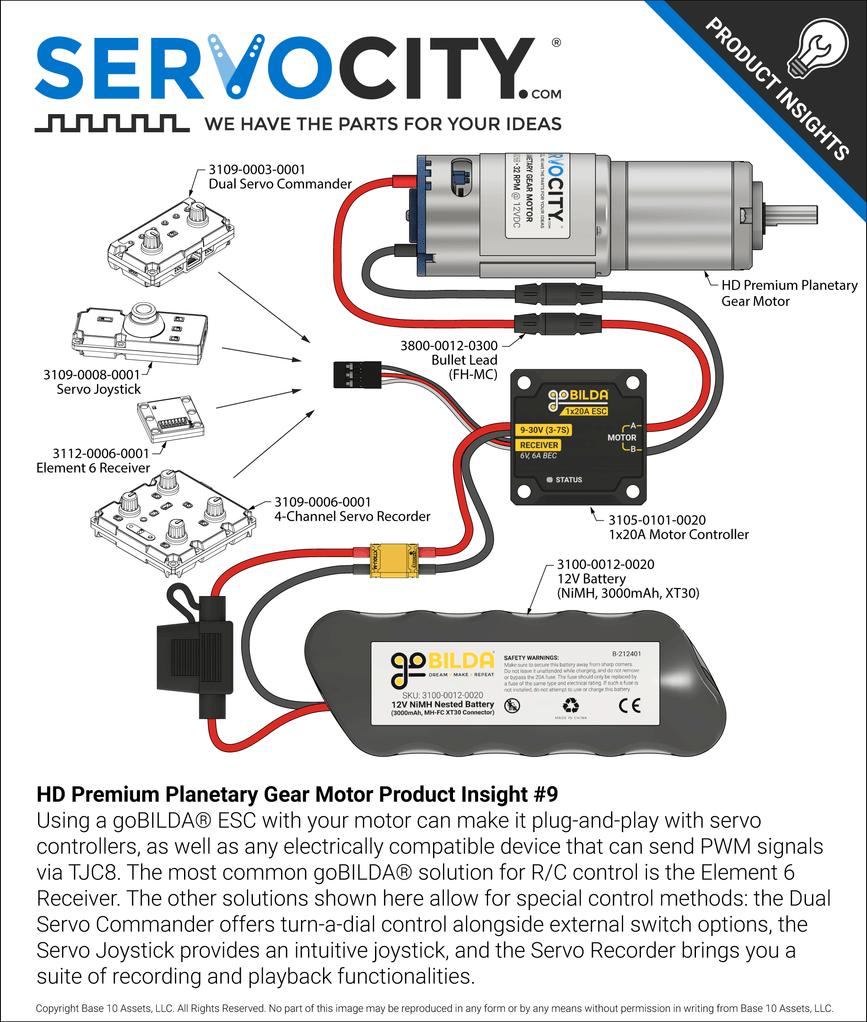

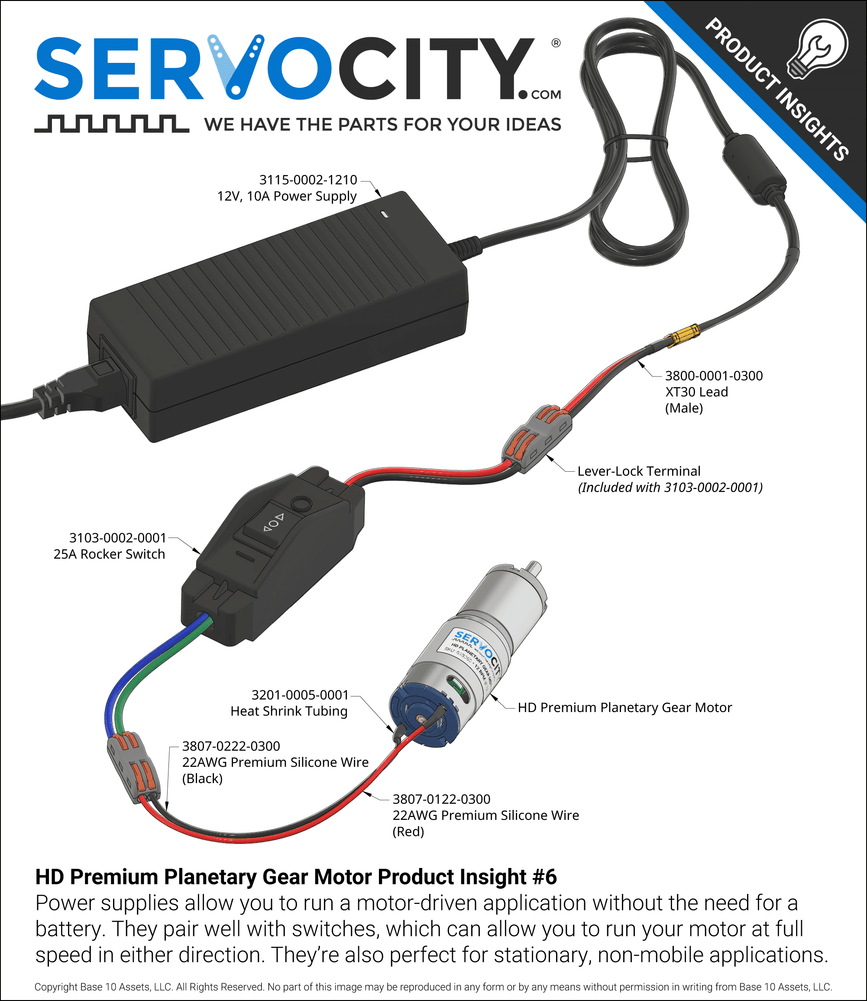

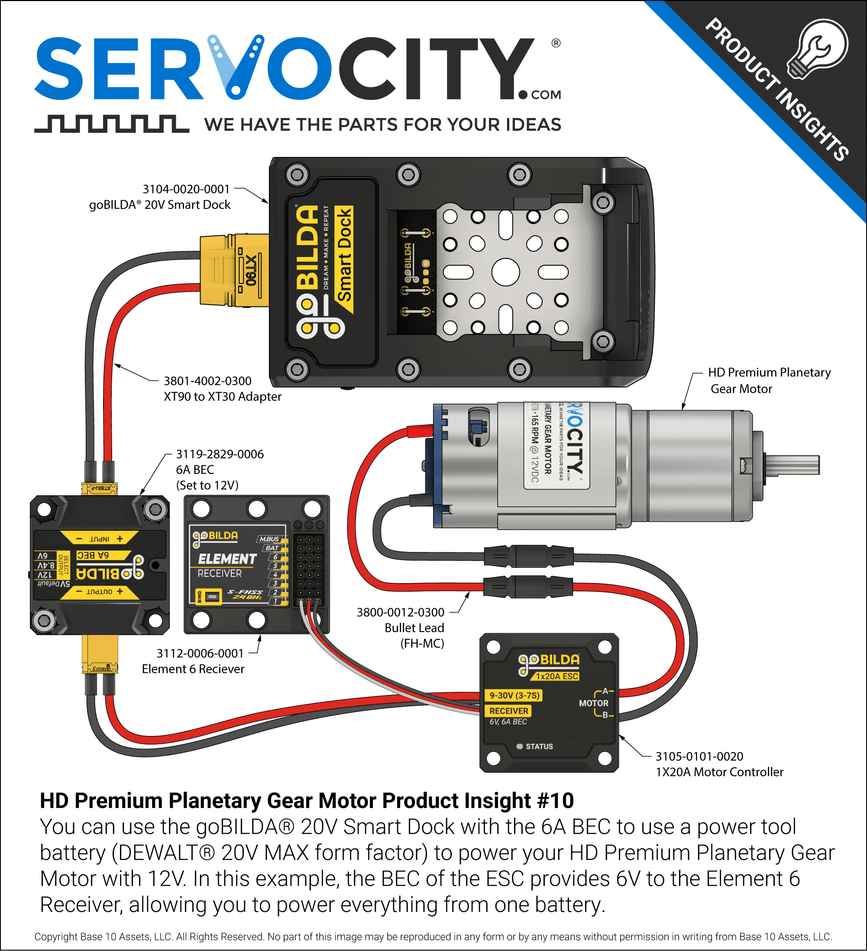

Electronics

Downloads

Specs

Output Shaft Style D-shaft
Motor Type Brushed DC
Output Shaft Support Dual Ball Bearings
Gear Material brass primary, nylon secondary, steel tertiary
Weight 12.9 oz (366g)
Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Speed (No Load @ 12VDC) 23 rpm
Current (No Load @ 12VDC) 0.54A
Current (Stall @ 12VDC) 20A
Torque (Stall @ 12VDC) 4,166 oz-in (300 kgf-cm)
Gearbox Style Planetary
Connector Type Male Spade Terminal
Gear Ratio 369:1
