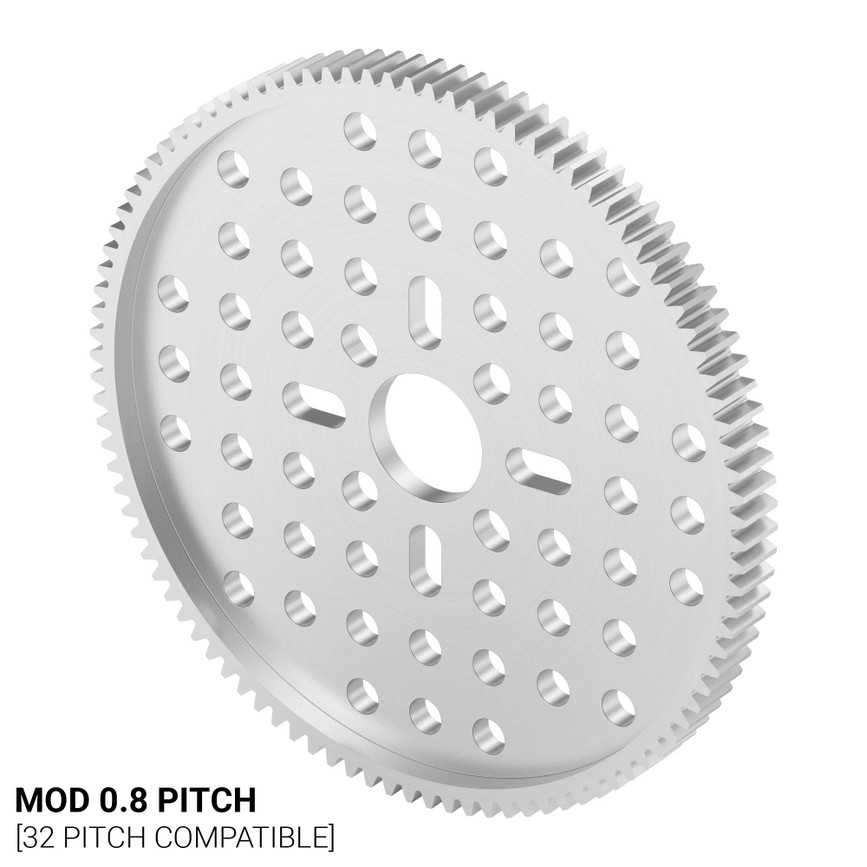

2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 100 Tooth)

SKU: Build System: goBILDA
$14.99

Currently Sold Out

The 100 tooth, MOD 0.8 gear will mate with any MOD 0.8 gear, but when building on pattern, the most common partner for this gear is a 20 tooth pinion gear or servo gear.  Using the pinion gear you can create a 5:1 underdrive or overdrive setup depending on your application.  When used with the 20 tooth servo gear, the combo creates a 5:1 underdrive, slowing the final speed while increasing the torque by 5x.

Downloads

Specs

Weight 38g
Material Aluminum
Finish Clear Anodized
Tooth Count 100
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
