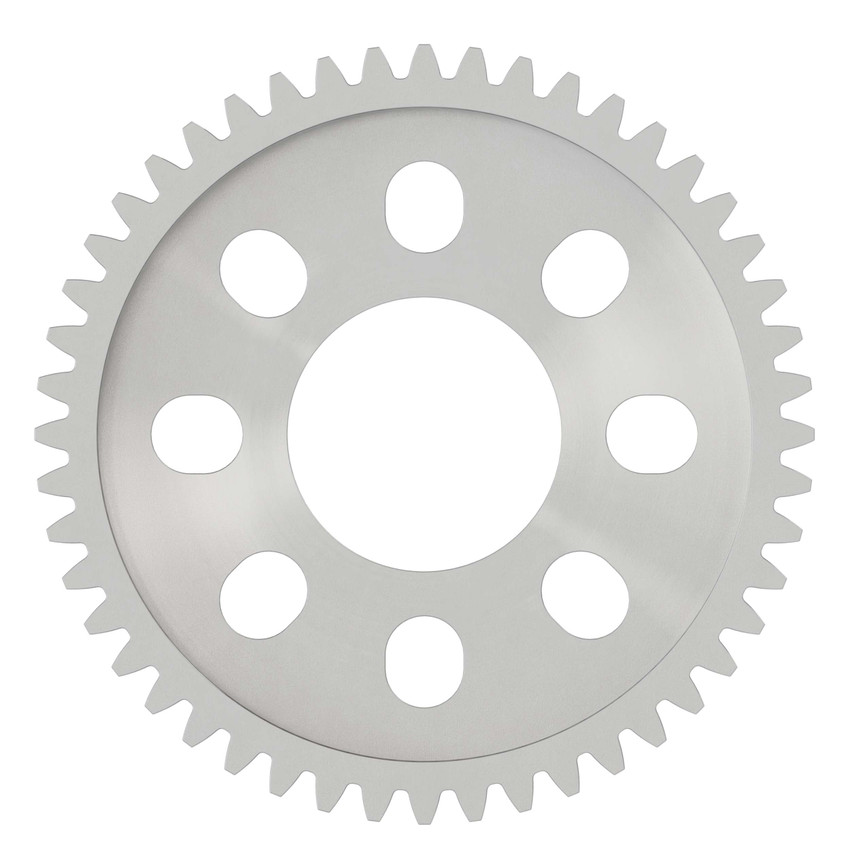

2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 48 Tooth)

SKU: Build System: goBILDA
$8.99

The 48 tooth, MOD 0.8 gear is the smallest hub gear we offer.  While it is able to mate with any MOD 0.8 gear, it’s most common partner is a 12 tooth servo gear.  This combo would create a 4:1 underdrive ratio increasing  the torque and decreasing the speed of the servo.  Center-to-center spacing would be 24mm.

Downloads

Specs

Weight 9.4g
Material Aluminum
Finish Clear Anodized
Tooth Count 48
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
