2303 Series Steel, MOD 0.8 Pinion Gear (1/4" Round Bore, 20 Tooth)
SKU:
$10.59

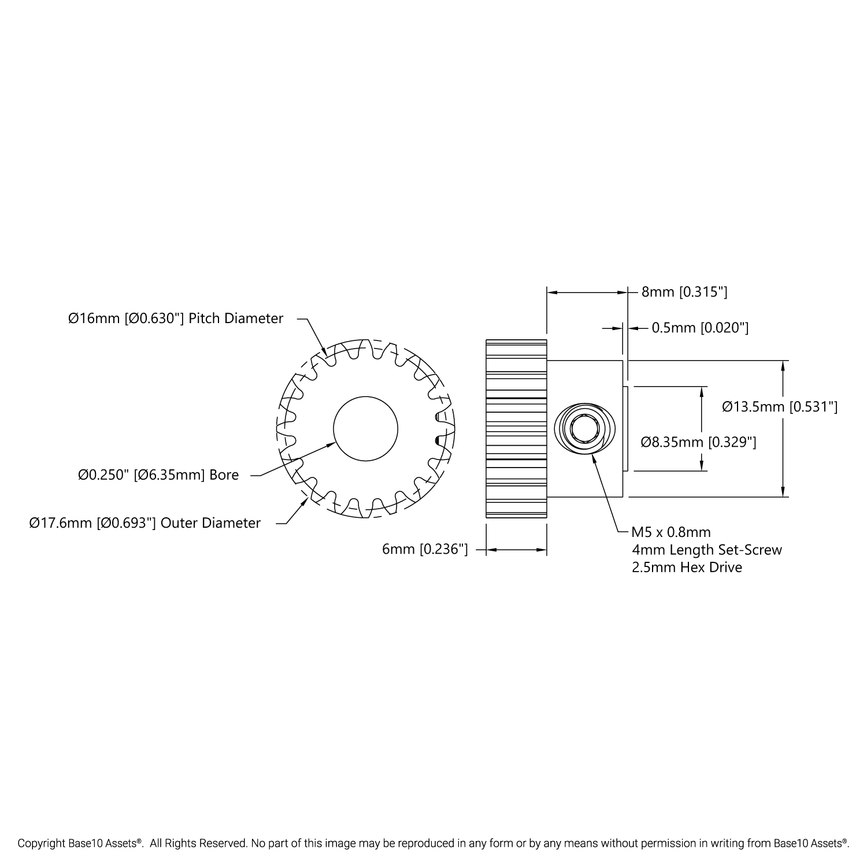

This 20 tooth pinion gear has a ¼” bore to fit on a ¼” round or D-profile shaft. When installed on a ¼” D-shaft, the M5 x 0.8mm set-screw tightens down onto the flat side of the shaft for an excellent hold.
The built-in shim allows this gear to run directly against a ¼” ID bearing without contacting the outer race.
Downloads
Specs
| # of teeth | 20T |
|---|---|
| Weight | 14g |
| Material | Steel |
| Pressure Angle | 20° |
| Finish | Black Zinc-Plated |
