27:1 Worm Gear Set (6mm to 1/4" Bore Worm, Hub Mount Worm Gear)

1 of 7

Be the first to review this product

Part
637226
637226
Status
In stock
This Product? Share It!

Details

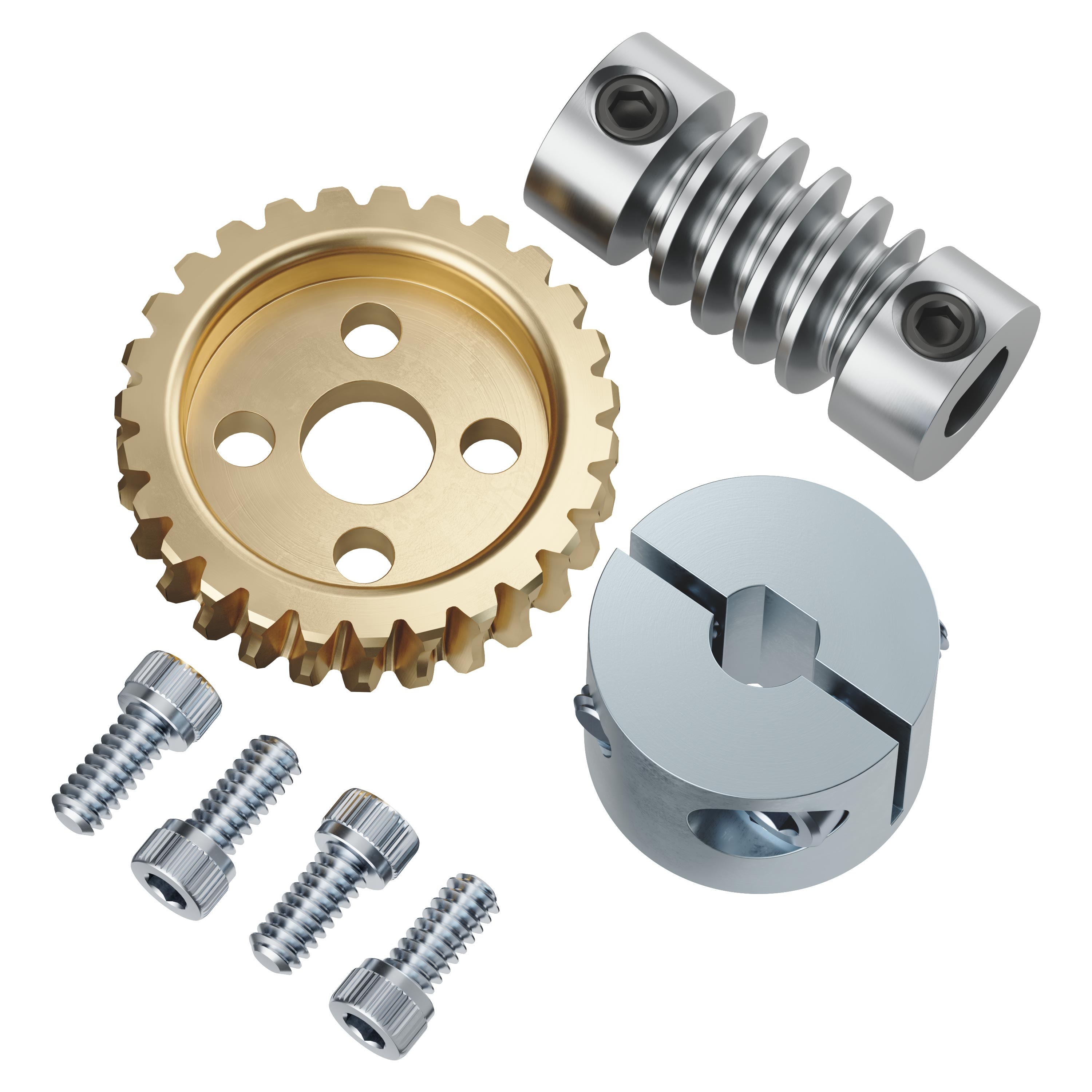

This 27:1 ratio worm gear set provides a compact way to create a drastic reduction in the output speed of a gear motor.  The 6mm bore on one side of the worm is intended to slide over the shaft of a motor, leaving the other side available to insert a 1/4" D-shaft into to provide additional axial support in demanding applications.  The mating worm gear is cut to perfectly mesh with the worm with a center spacing of 0.75"; the same spacing as you'll find on the Actobotics Channel.  The worm gear is mounted with the provided 1/4" D-Bore Clamping Hub.  By the nature of the way the gears are cut, it's impossible to backdrive this setup which makes it an excellent solution for applications that have a moment arm that always acts on the motor which moves the arm.

SPECS

Set Includes:

Qty SKU Product Description
1 615464 27 Tooth Brass Hub Mount Worm Gear
1 615466 6mm D-Bore to 1/4" Round Bore Stainless Steel Worm
1 545307 1/4" D-Bore Clamping Hub for Worm

Worm Gear Assembly Schematic

615464 Schematic

545307 Schematic
