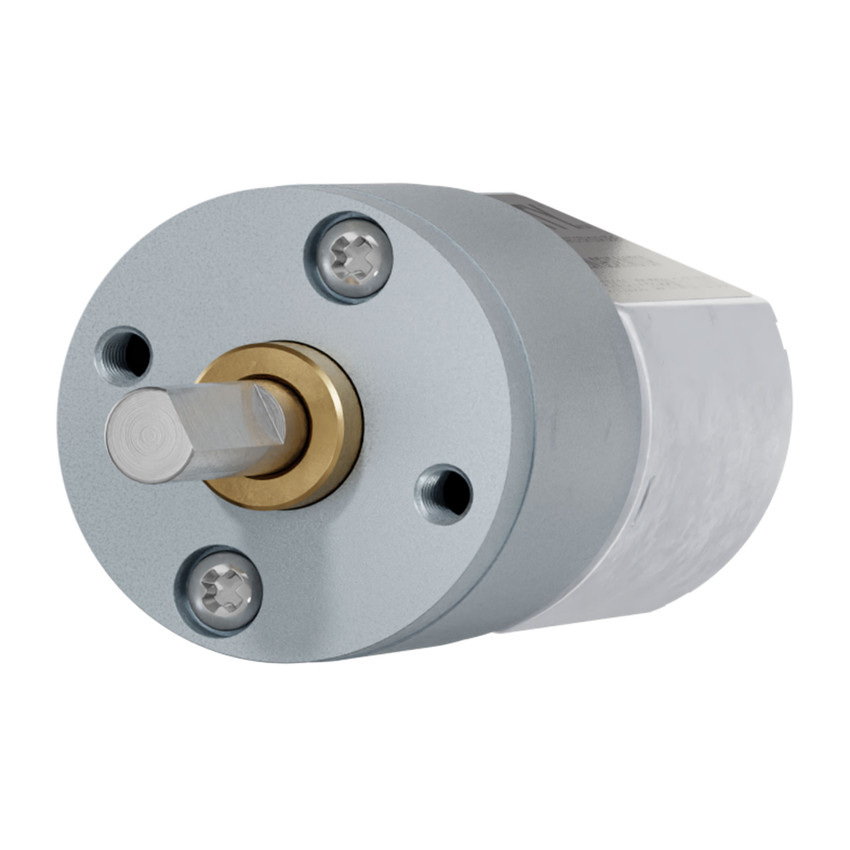

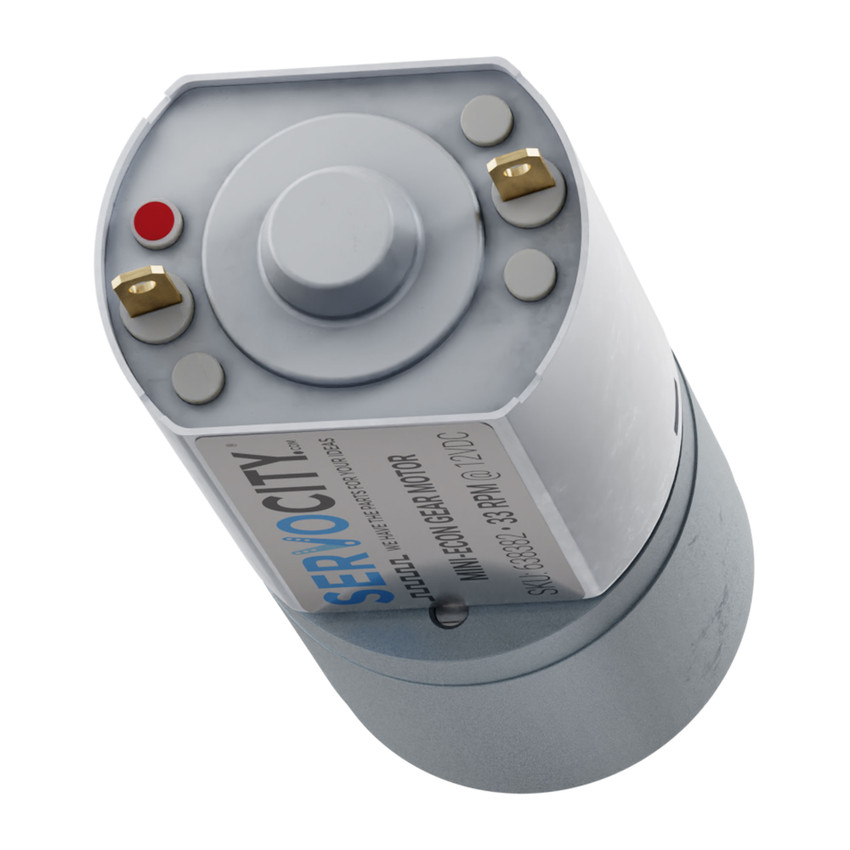

33 RPM Mini Econ Gear Motor
SKU:
$12.99
Tech Tip
Stalling this gearmotor could cause gear damage.
Downloads
Specs
| Output Shaft Style | D-shaft |
|---|---|
| Motor Type | Brushed DC |
| Output Shaft Support | Bushing |
| Gear Material | Metal |
| Weight | 1.60 oz (44g) |
| Voltage (Nominal) | 12V |
| Speed (No Load @ 12VDC) | 33 rpm |
| Current (No Load @ 12VDC) | 0.1A |
| Current (Max Load @ 12VDC) | 0.35A |
| Current (Stall @ 12VDC) | 1.5A |
| Torque (Stall @ 12VDC) | 520 oz-in (37.5 kgf-cm) |
| Gearbox Style | Straight Cut Spur |
| Connector Type | Male Spade Terminal |
| Gear Ratio | 390:1 |
