3504 Series Lead Screw Clamping Collar (8mm Lead, 4 Start, 18mm OD, 8mm Length)

1 of 1

Be the first to review this product

Part
3504-0804-1808
3504-0804-1808
Status
In stock
This Product? Share It!

Details

The bore of this 8mm lead screw clamping collar matches the threads of an 8mm, 4 start lead screw to provide maximum clamping force when the pinch bolt is tightened down.  A lead screw collar is commonly found in linear motion assemblies where the lead screw is held in a bearing or pillow block and it’s necessary to restrict the lead screw from moving axially.

SPECS

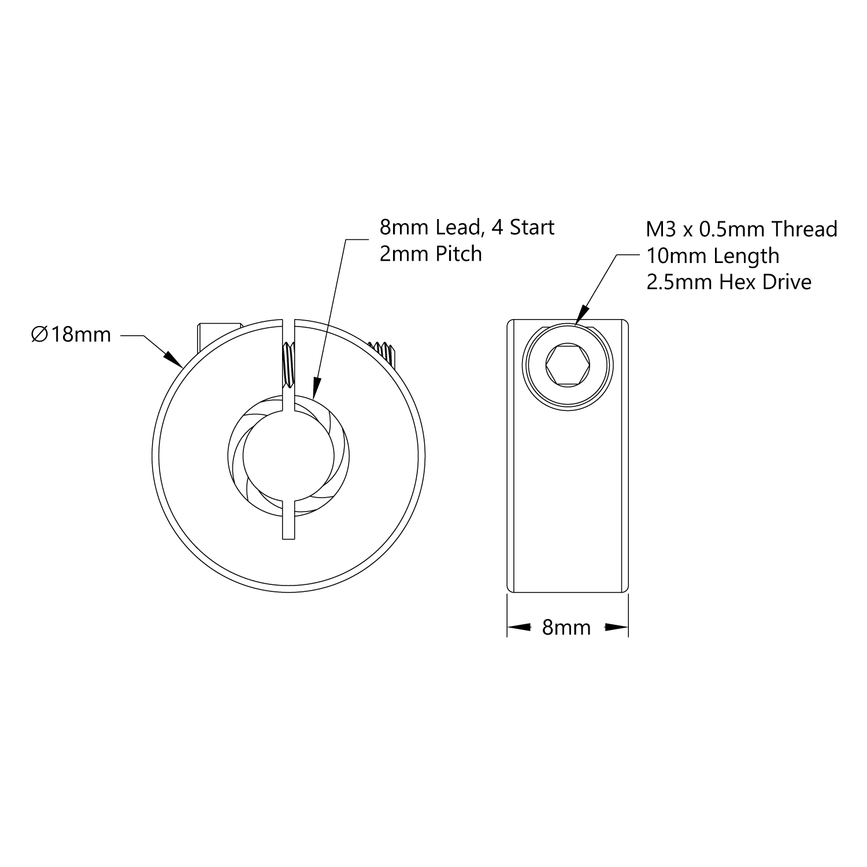

3504-0804-1808 Schematic

Product Weight 0.17oz (4.9g)
Material Aluminum
Lead Pitch 2mm
Number of Starts 4
