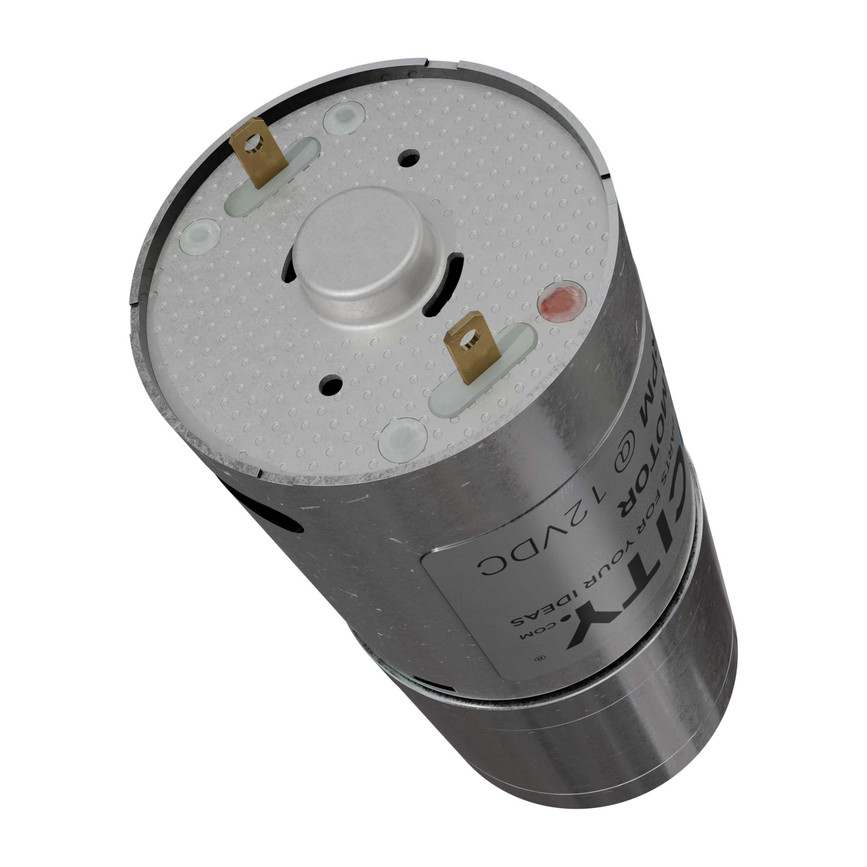

56 RPM Econ Gear Motor

  • Use with our 4mm bore set screw hubs
  • Use with our 4mm bore clamping hubs
  • Shown with a set screw hub and a precision disk wheel
  • Shown with a 4mm to 1/4” shaft coupler
  • We offer several 4mm bore gears that work with this motor
  • Use our quick connect power input board with this motor (#605118)
  • shown attached to 25mm clamp (585716)
  • shown attached to 25mm clamp (585716) and aluminum channel
  • shown attached to 25mm clamp (585716) and aluminum channel
1 of 10

Be the first to review this product

Part
638348
638348
Status
In stock
This Product? Share It!
SPECS

638346-638348

Gear train damage can occur if stalled (locked)

*At Nominal Voltage

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 18V
Speed (No Load)* 56 rpm
Current (No Load)* 0.11A
Current (Stall)* 3.85A
Torque (Stall)* 914.01 oz-in (65.82 kgf-cm)
Gear Ratio 171:1
Gear Material Metal
Gearbox Style Straight Cut Spur
Motor Type DC
Output Shaft Diameter 4mm (0.1575”)
Output Shaft Style D-shaft
Output Shaft Support Bushing
Electrical Connection Male Spade Terminal
Operating Temperature -10°C ~ +60°C
Mounting Screw Size 3mm
Product Weight 0.20lb (3.25oz)
