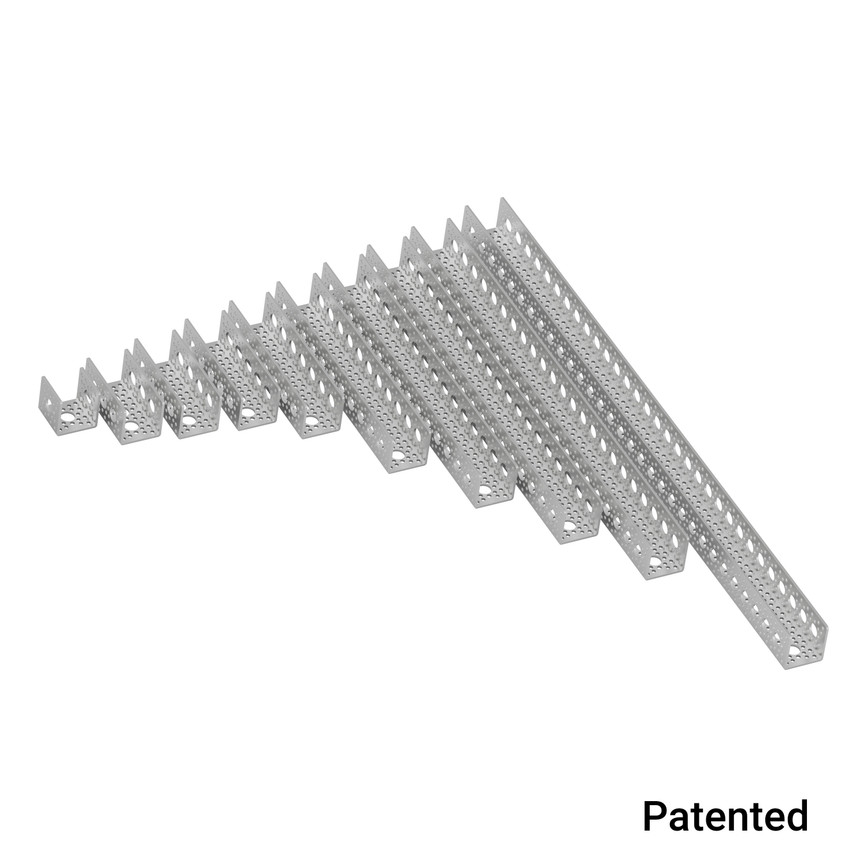

Channel Bundle

1 of 1

Be the first to review this product

Part
639014
639014
Status
In stock
This Product? Share It!

Details

Save 27% when you buy a bundle pack of Aluminum Channel! (10 pc set)  We recommend using 6-32 socket head machine screws with our channel (sold separately).

SPECS

INCLUDED PARTS:

Qty Part Number Description
1 585440 1.50" Channel
1 585442 3.00" Channel
1 585443 3.75" Channel
1 585444 4.50" Channel
1 585446 6.00" Channel
1 585450 9.00" Channel
1 585454 12.00" Channel
1 585458 15.00" Channel
1 585462 18.00" Channel
1 585466 24.00" Channel



Aluminum Channel Schematics

Actobotics Channel Schematics with hole sizes1

Product Weight 2.35 lbs
Material Aluminum
Finish Clear Anodized
Hole Pattern 0.770" and 1.50"
Pattern Spread 0.75"
RESOURCES



Download Attachment
zip585440 STEP File(55.09 KB )Download
zip585442 STEP File(111.66 KB )Download
zip585443 STEP File(140.27 KB )Download
zip585444 STEP File(168.79 KB )Download
zip585446 STEP File(226.66 KB )Download
zip585450 STEP File(342.96 KB )Download
zip585454 STEP File(461.17 KB )Download
zip585458 STEP File(578.64 KB )Download
zip585462 STEP File(695.57 KB )Download
zip585466 STEP File(935.66 KB )Download
