HS-785HB Channel Slider Kit

  • closeup of servo end
  • closeup of belt/pulley
  • closeup of channel slider

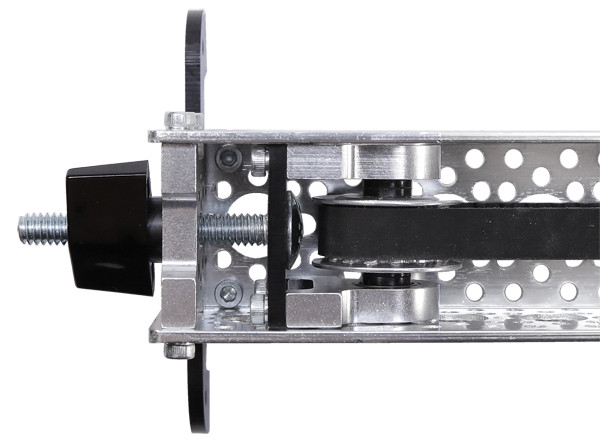

  • closeup of belt tensioner

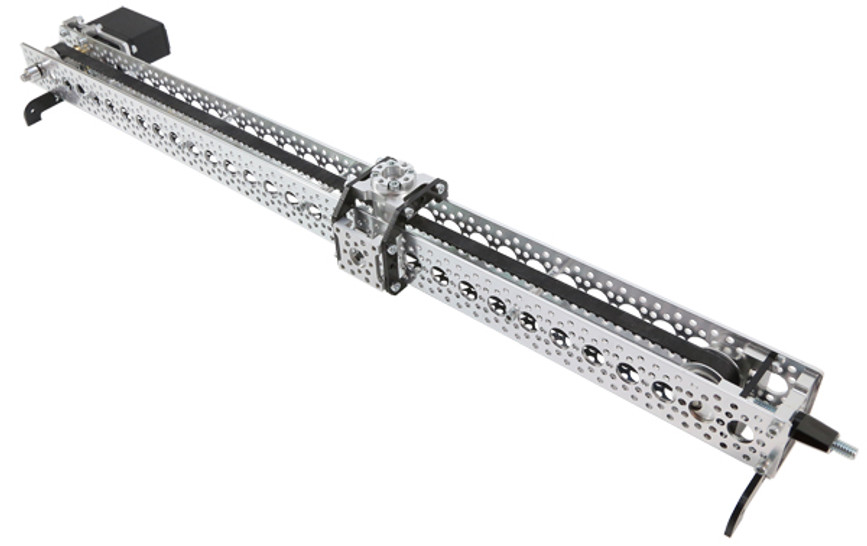

  • slider at an angle

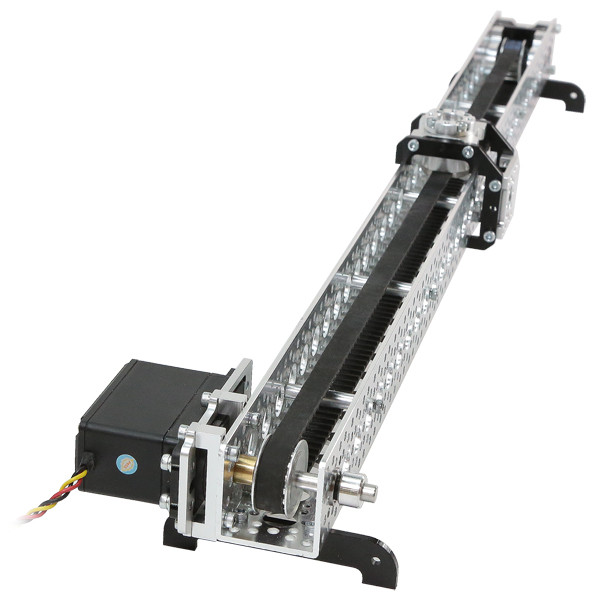

  • slider at an angle
  • closeup of channel slider and mount

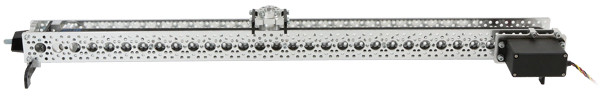

  • end to end view
1 of 9

Be the first to review this product


Regular Price: $169.99

Special Price $118.99

Sign up for Price Alert
In stock
This Product? Share It!


The HS-785HB Channel Slider Kit provides an excellent way to create linear motion using a rotational servo. The unique Hitec HS-785HB servo (included in the kit) can rotate multiple turns while retaining positioning feedback which makes it perfect for this type of application. The XL timing belt and XL pulleys offer a reliable way to transfer the rotation of the servo into a smooth linear motion down the 24” channel backbone. Total usable travel is approximately 19.25” and the rate of travel is .47” / second when running operating on 6V. Whether you’re building an R2D2 replica, a pick-and-place machine or a telescoping arm this kit may be just what you need to put your project in motion. The framework is constructed entirely of Actobotics components which means connecting additional components to it will be a breeze.

Signal information: The HS-785HB servo rotates approximately 1.7 degrees/microsecond change in signal. To achieve full travel, a signal range from approximately 820-2180usec will be required (each HS-785HB servo responds to a signal slightly differently so you may need to fine-tune this range in order to achieve full travel without hitting the stops at the ends). On a standard RC transmitter and receiver (assuming a 1050-1950usec range) the slider will travel approximately 12.75”.

This product ships in kit form and requires assembly.  For details on the assembly process, check out the assembly videos in tihe 'tech tips' section below.

(1) HS-785HB Servo
(1) 24” Aluminum Channel
(2) 15T, 1/4” Bore Pinion Pulley
(1) 1/4” ID x 1/2” OD Flanged Ball Bearing
(1) XL Belt Mount A
(1) Bracket for Quarter Scale Servo Plate (pair)
(2) 1/4” Bore Bottom Tapped Pillow Block
(1) C1 Servo Spline to 1/4" Shaft Coupler (Set Screw)
(2) Side Tapped Pattern Mount E
(1) Channel Slider D (pair)
(1) 90 Degree Dual Side Mount A (pair)
(1) 2” L x 1/4” Stainless Steel D-shaft
(1) 1.25” L x 1/4” Stainless Steel D-shaft
(1) Channel Feet A - Small (pair)
(1) 1/2” Aluminum Hub Spacer
(1) Large Servo Plate A
(1) Acetal Carriage Bolt Tensioner Plate
(1) 1/4-20 Carriage Bolt
(1) 1/4-20 Knob
(1) 46” Timing Belt
(1) 6-32 x 1/4” Zinc Socket Head Cap Screws (25 pk)
(5) 1/4” Shaft Spacers
(1) 1/4” Set Screw Collar
(1) 0.770 - 0.770 Hub Adaptor
(4) 6-32 x 1” Zinc Socket Head Cap Screws
(1) 90 Degree Quad Hub Mount C
(1) 6-32 x 5/16” Socket Head Cap Screws (25 pk)
(1) 1.32” Aluminum Standoffs (4 pk)
(4) #6 Standard Washers

Dimensions 24" L
Product Weight 1.4 lbs
Servo Included Yes
Travel Length 19.25"
PWM Range to Achieve Full Travel 820-2180usec
