This 7:1 Ratio, SG12 Series Servo Gearbox is driven by the goBILDA 2000-0025-0002 servo which has been altered to read feedback from a potentiometer located on the final shaft of the Servo Gearbox so that the rotation is not limited or effected by the ratio chosen. The 7:1 ratio will result in the large aluminum gear spinning at one seventh the speed of the original servo, but with seven times the torque! If the SG12-70 doesn't suit your needs, be sure to check out the other Servo Gearbox options.

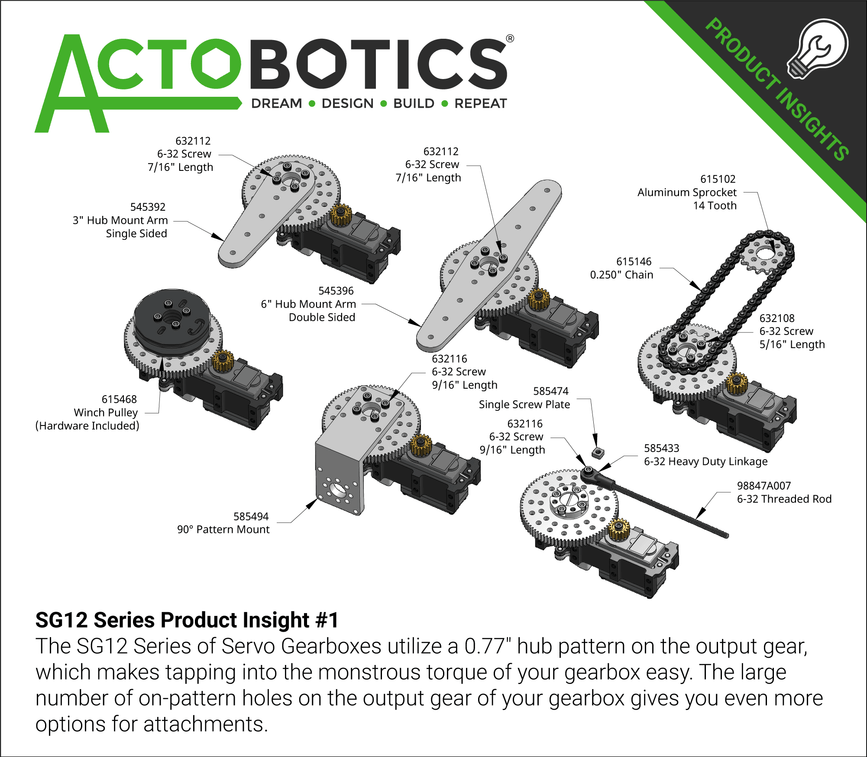

The 1/2" diameter stainless steel shaft of the Servo Gearbox is supported by a pair of 1/2" ball bearings and held in place with retaining rings above and below the bearings so that it can withstand loads from any direction. An arm, disk or linkage can be fastened to the threaded holes on the Actobotics 0.77" pattern. Alternately, the 0.14" thru-holes on the perimeter of the aluminum hub gear can be used to fasten standoffs, spacers or a linkage to, or, you can slide a 1" clamping hub around the spacer on top of the gearbox for quick adjustments to the item being fastened.
The Servo Gearbox is easily attached to Actobotics Channel, given it's overall width of 1.32" (to match the internal width of U-Channel). For those of you installing in an R/C vehicle, the 585506 bracket is a popular choice as it creates ears to mount the servo gearbox down to a flat surface.
The answer to this question is partially dependant on what you are using to control the servo that drives the gearbox. Click for a quick video explanation.
With an Average Radio System:
Your average transmitter and receiver will output a relativly narrow PWM signal range.
Radio System + Travel Tuner:
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
Controllers such as the Actobotics® Servo Controller, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
While we offer a variety of pre-made ratios, if you already own one of our Servo Gearboxes and want to change the ratio, here are the gears you will need to obtain the ratio you desire.
|Ratio||Servo Gear||Hub-Mount Gear|
|2:1||32T (615310)||64T (615194)|
|3:1||24T (615306)||72T (615198)|
|3.8:1||20T (615302)||76T (615202)|
|5:1||16T (615298)||80T (615206)|
|7:1||12T (615294)||84T (615210)|
|Weight||6.9 oz (194g)|
|Voltage Range||4.8V - 7.4V|
|No-Load Speed (4.8V)||1.75 sec/60°|
|No-Load Speed (6.0V)||1.4 sec/60°|
|No-Load Speed (7.4V)||1.12 sec/60°|
|Stall Torque (4.8V)||1680 oz-in (121.0 kg.cm )|
|Stall Torque (6.0V)||2100 oz-in (151.2 kg.cm)|
|Stall Torque (7.4V)||2450 oz-in (176.4 kg.cm)|
|No-Load Current (4.8V)||150mA|
|No-Load Current (6.0V)||160mA|
|No-Load Current (7.4V)||200mA|
|Stall Current (4.8V)||2,000mA|
|Stall Current (6.0V)||2,500mA|
|Stall Current (7.4V)||3,000mA|
|Max PWM Range||500-2500μsec|
|Travel per μsec||0.321°/μsec|
