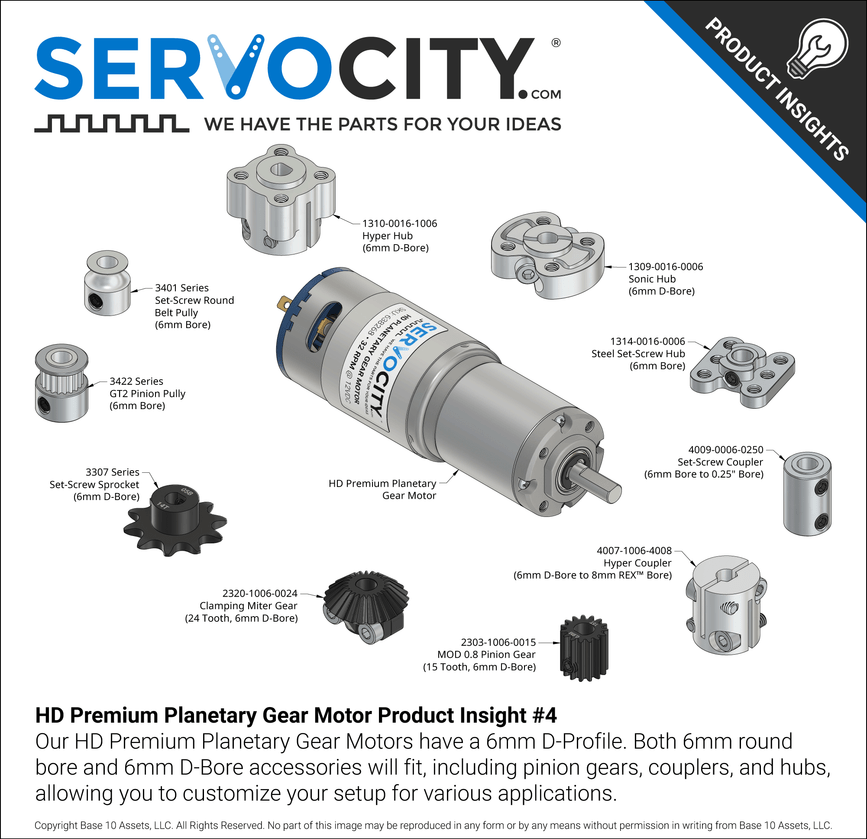

16 RPM HD Premium Planetary Gear Motor

SKU:
$39.99

Tech Tip

Stalling this gearmotor could cause gear damage.

Specs

Output Shaft Style D-shaft
Motor Type Brushed DC
Output Shaft Support Dual Ball Bearings
Gear Material brass primary, nylon secondary, steel tertiary
Weight 13.1 oz (370g)
Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Speed (No Load @ 12VDC) 16 rpm
Current (No Load @ 12VDC) 0.54A
Current (Stall @ 12VDC) 20A
Torque (Stall @ 12VDC) 5,805 oz-in (418 kgf-cm)
Gearbox Style Planetary
Connector Type Male Spade Terminal
Gear Ratio 516:1
$39.99
