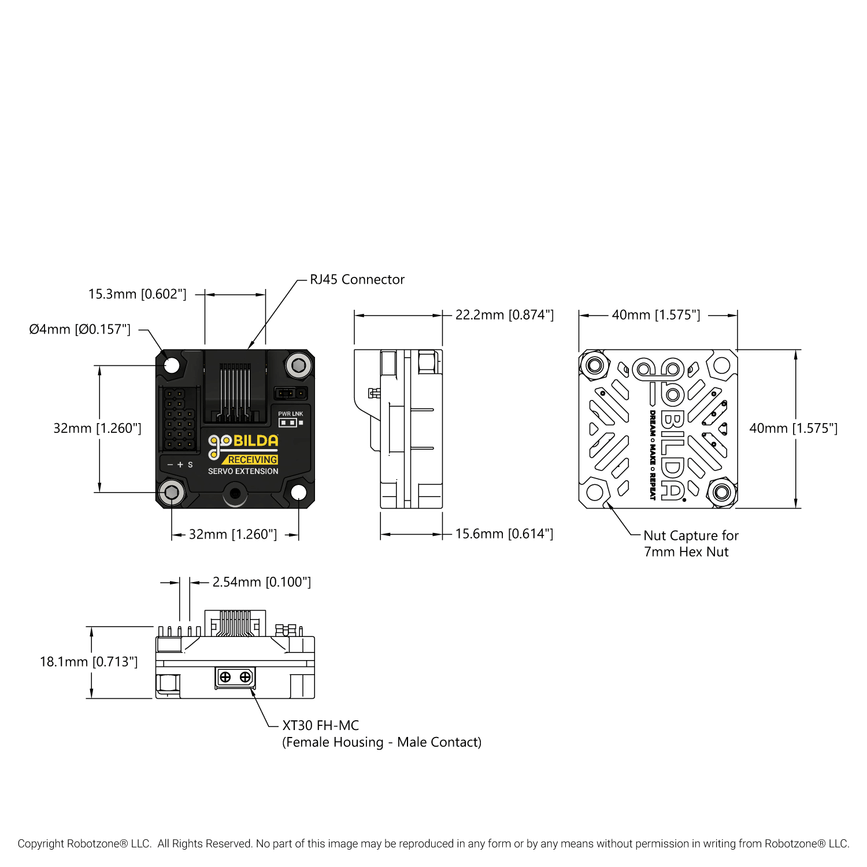

Servo Extension via CAT6 (Receiving Board)
SKU:
Build System: goBILDA
This board takes a servo signal sent over a CAT6 cable and breaks it out through servo-compatible TJC8 pins. This Receiving Board is the counterpart to the Sending Board (3116-2745-0001). The two can be purchased together as 3802-2745-4527.
Compatibility
Ethernet Cables: While CAT6 is the recommended cable, the RJ45 connector this Servo Extension uses is also compatible with CAT5, CAT5e, CAT6a, and CAT8 cables.
Servos: This Servo Extension is compatible with any servo which uses a PWM signal. That's just about any servo in the hobby or small-medium robotics industries.
Actobotics Electronics: While this Receiving Board uses CAT6, it utilizes a newer protocol than Actobotics CAT6 boards (605102, 605103, and 902MSD), making them incompatible with each other.
Specs
| Weight | 23g (0.81oz) |
|---|---|
| Recommended Voltage Range | 6V - 15V |
| Max Voltage Range | 3.3V - 18V |
| Signal Channels | 4 |
| Max Current (When powered at Receiving Board) | 16A Total (4A per Channel) |
| Max Current over CAT6 (When powered at Sending Board) | 4A Total |
| Servo Compatibility | Analog & Digital |
| Maximum Recommended Ethernet Cable Length | 100ft (30M) |
| Power Compatibility | TJC8, XT30, 3mm Solder Holes |
