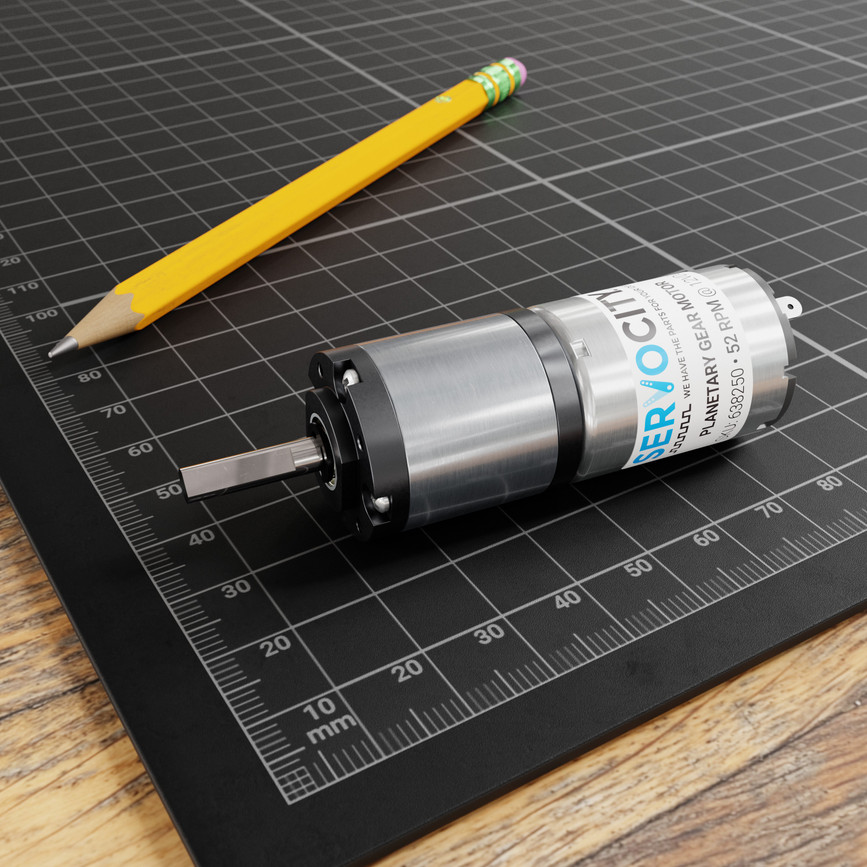

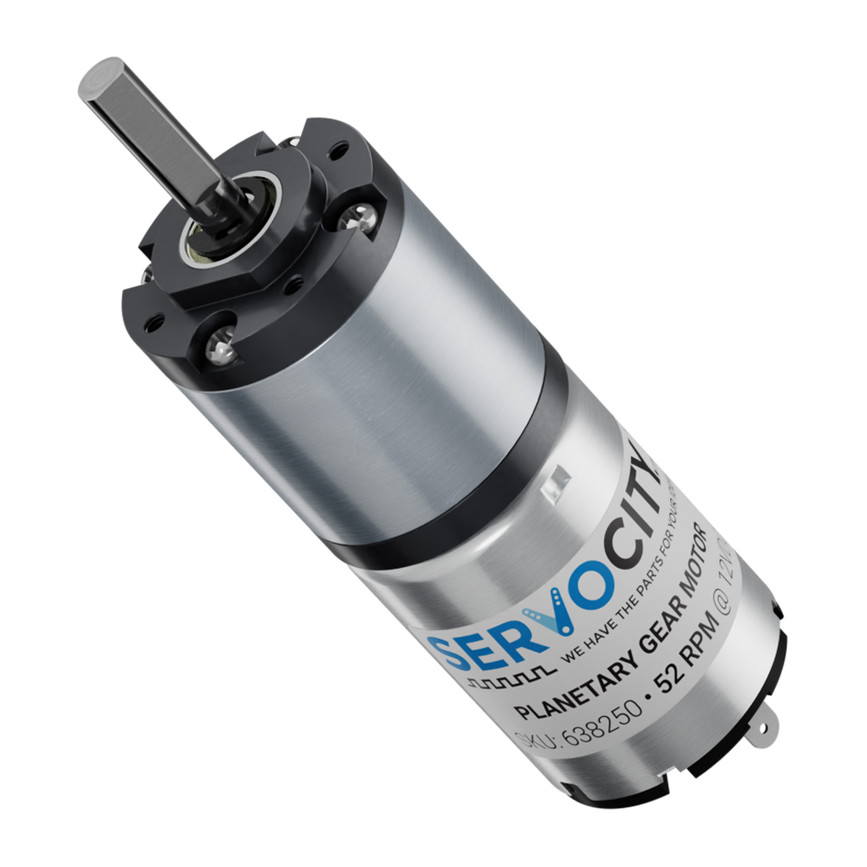

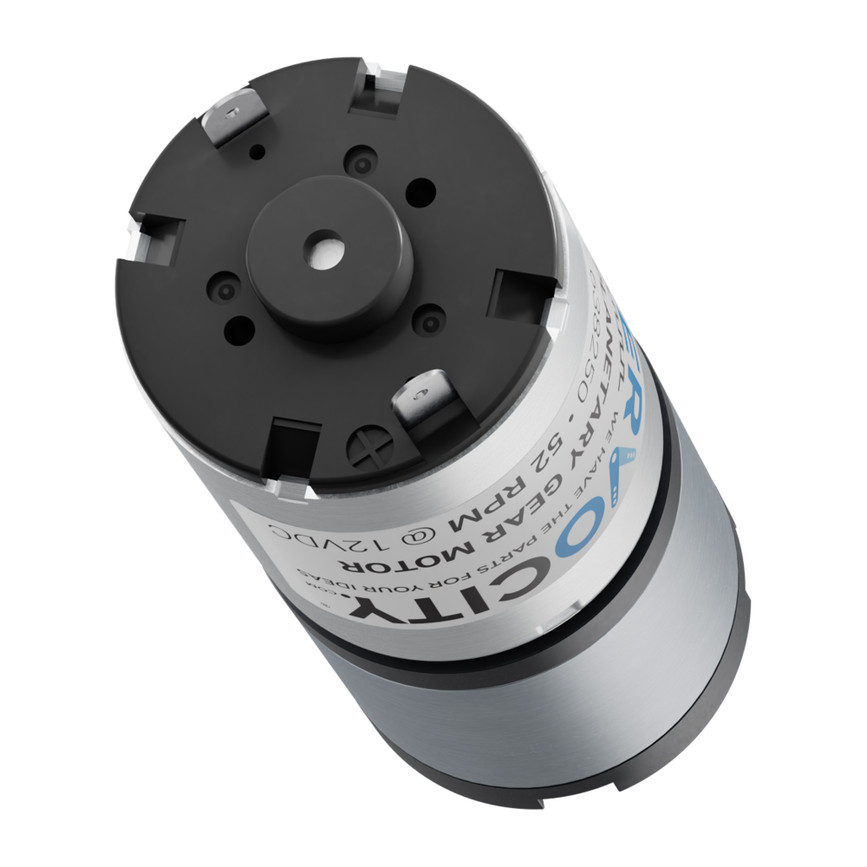

52 RPM Premium Planetary Gear Motor

  • shown with premium gear motor mount A (555172)
  • shown with clamping motor mount E (545660) and motor drive
  • shown with 22mm clamping hub (545666)
  • shown with clamping hub E (545660)
  • shown with 4mm set screw hub and sprocket

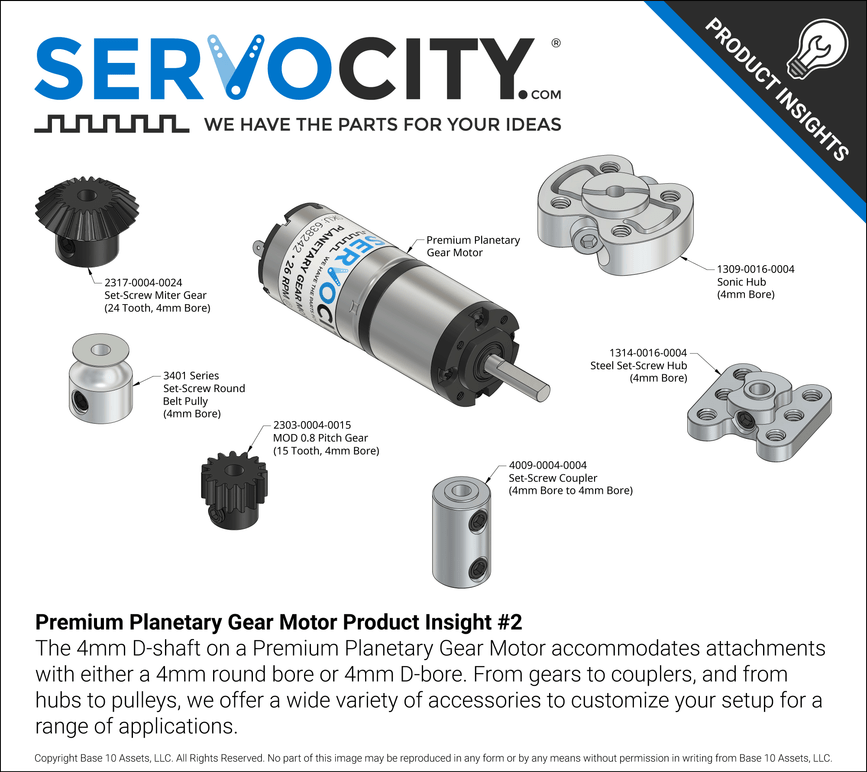

  • compatible with 4mm pinion gears
  • compatible with 4mm clamping and set screw hubs
1 of 8

Be the first to review this product

Price

Regular Price: $27.99

Special Price $20.99

Sign up for Price Alert
Part
638250
638250
Status
In stock
This Product? Share It!
SPECS

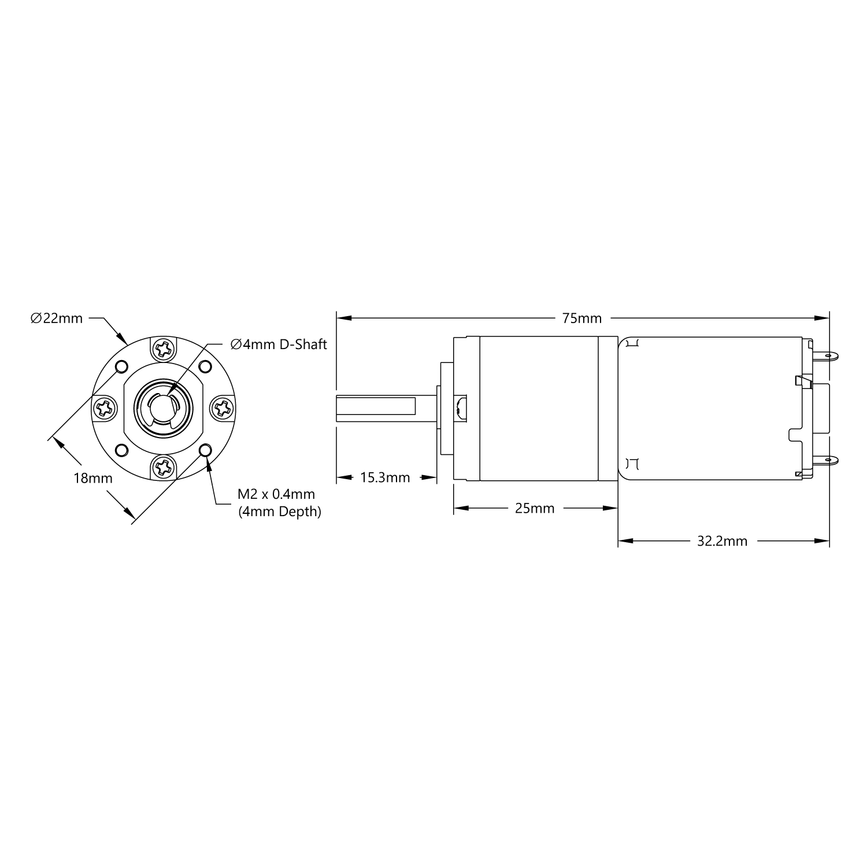

638242-638250 Schematic

Gear train damage can occur if stalled (locked).

*At Nominal Voltage

Voltage (Nominal) 12V
Voltage Range (Recommended) 3V - 12V
Speed (No Load)* 52 rpm
Current (No Load)* 0.21A
Current (Stall)* 4.9A
Torque (Stall)* 291.6 oz-in (21 kgf-cm)
Gear Ratio 231:1
Gear Material Metal
Gearbox Style Planetary
Motor Type DC
Output Shaft Diameter 4mm (0.1575”)
Output Shaft Style D-shaft
Output Shaft Support Dual Ball Bearing

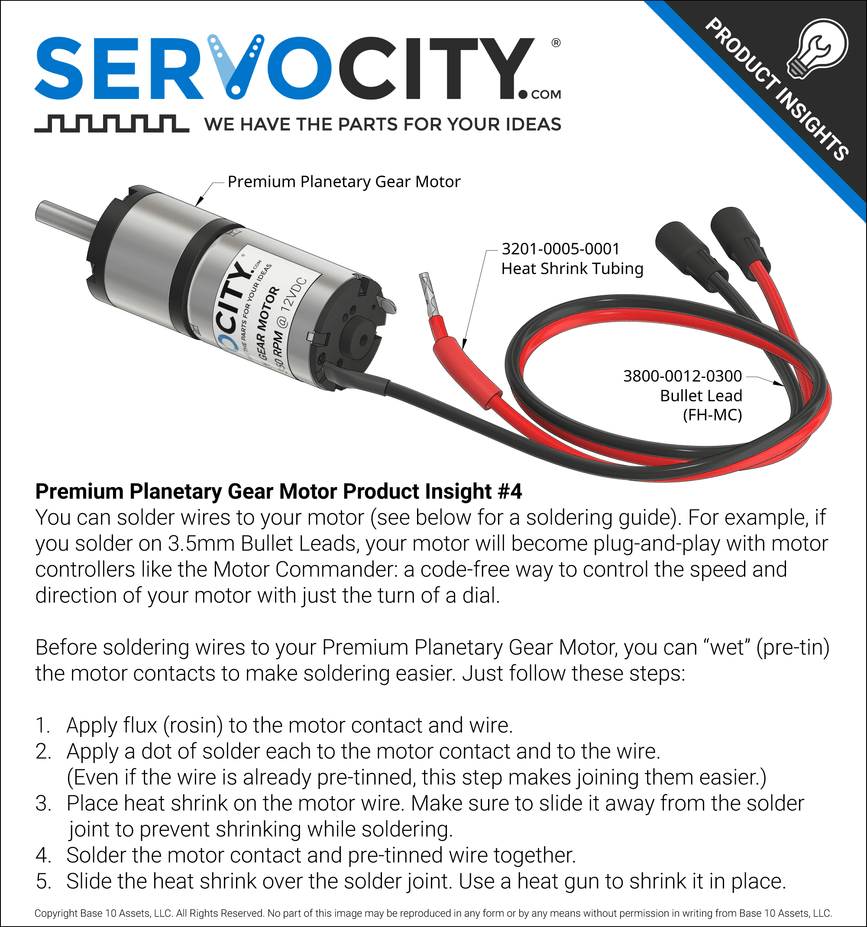

Electrical Connection Male Spade Terminal
Operating Temperature -10 ~ +60°C
Mounting Screw Size M2 x 0.4mm
Product Weight 100g (3.53oz)
RESOURCES



Download Attachment
pdf52 rpm Premium Planetary Gear Motor Spec Sheet(670.94 KB )Download
