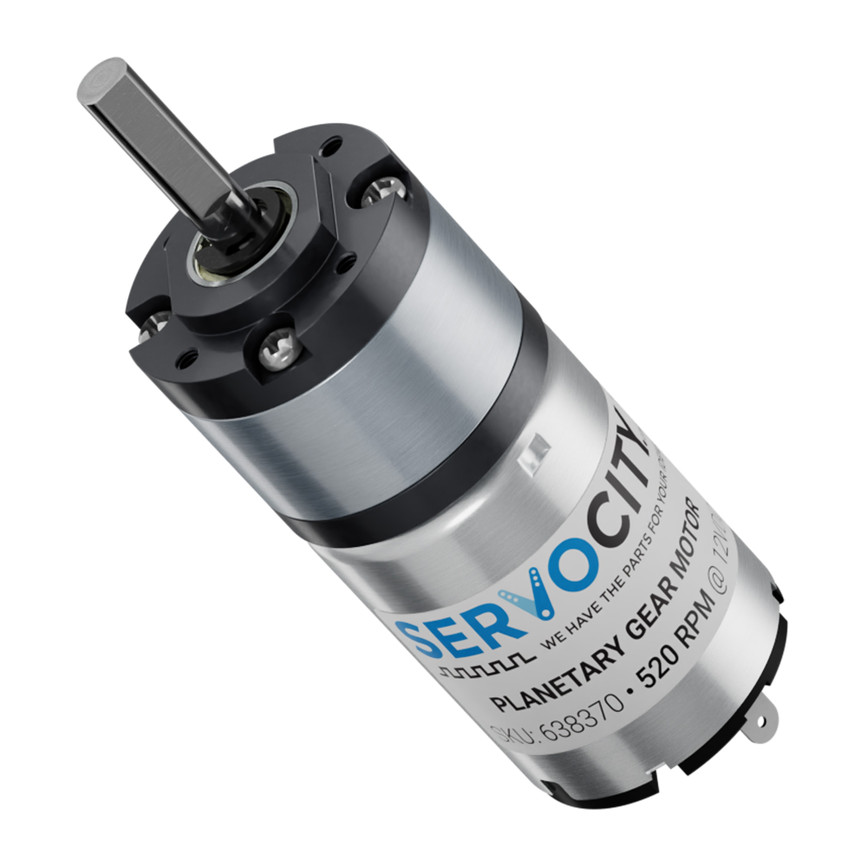

520 RPM Premium Planetary Gear Motor

  • shown with 22mm clamping hub (545666)
  • shown with premium gear motor mount A (555172)
  • shown with 4mm set screw hub and sprocket
  • shown with clamping motor mount E (545660) and motor drive

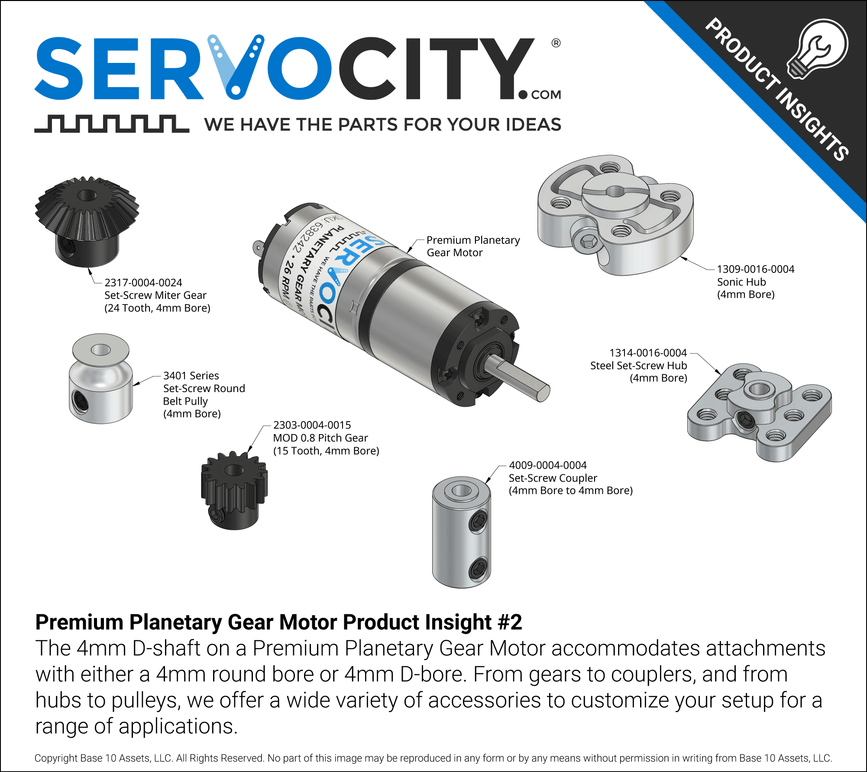

  • compatible with 4mm clamping and set screw hubs
  • compatible with 4mm pinion gears
  • shown with clamping hub E (545660)
1 of 8

Be the first to review this product

Price

Regular Price: $27.99

Special Price $20.99

Sign up for Price Alert
Part
638370
638370
Status
In stock
This Product? Share It!
SPECS

638370 Schematic

Gear train damage can occur if stalled (locked).

*At Nominal Voltage

Voltage (Nominal) 12V
Voltage Range (Recommended) 3V - 12V
Speed (No Load)* 520 rpm
Current (No Load)* 0.16A
Current (Stall)* 4.6A
Torque (Stall)* 40.27 oz-in (2.9 kgf-cm)
Gear Ratio 19:1
Gear Material Metal
Gearbox Style Planetary
Motor Type DC
Output Shaft Diameter 4mm (0.1575")
Output Shaft Style D-shaft
Output Shaft Support Dual Ball Bearing
Electrical Connection Male Spade Terminal
Operating Temperature -10 ~ +60°C
Product Weight M2 x 0.4mm
RESOURCES



Download Attachment
pdf520 rpm Precision Planetary Gear Motor Spec Sheet(2.36 MB )Download
