SB3262SG-BE High Torque, High Voltage Brushless Servo (Black Edition)
SKU:
The Savox SB3262SG-BE features a low-profile form factor that saves precious vertical clearance by being shorter than a conventional standard servo while still fitting standard-sized mounts. Engineered for rapid response times and high-speed transit, this compact actuator is an excellent drop-in choice for tight spaces, quick linkages, or dynamic mechanisms that require speed without extra bulk. Driven by a long-lasting brushless motor and a 32-bit digital processor, it delivers crisp performance with smooth tracking. The package is rounded out with a sleek, all-black "Black Edition" aesthetic, a heat-sinking aluminum center case, and an all-steel gear train built to handle high-frequency directional changes over a long operational lifespan.
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
90°
Using the PWM signal range provided by most R/C transmitters (1050–1950 µsec), this servo rotates approximately 90°. This operating range is common throughout the hobby industry, but it does not utilize the servo's full available travel.
Wide Signal Controllers:
170°
When driven with the maximum PWM signal range (650–2350 µsec), this servo can achieve approximately 170° of rotation. This wider signal range can be generated by devices such as ESP32s, Arduinos, Raspberry Pi servo controllers, and other programmable servo drivers. Signals outside this range are not recommended as they may result in reduced performance, erratic operation, or no response.
Tech Tips
Downloads
Specs
| Weight | 53g |
|---|---|
| Output Shaft Style | H25T Spline |
| Voltage Range | 6.0V - 12.6V |
| No-Load Speed (6.0V) | 0.1 sec/60° (100RPM) |
| No-Load Speed (7.4V) | 0.08 sec/60° (125RPM) |
| No-Load Speed (8.4V) | 0.065 sec/60° (154RPM) |
| No-Load Speed (12.6V) | 0.05 sec/60° (200RPM) |
| Stall Torque (6.0V) | 305.5 oz-in (22 kg.cm) |
| Stall Torque (7.4V) | 388.8 oz-in (28 kg.cm) |
| Stall Torque (8.4V) | 486.1 oz-in (35 kg.cm) |
| Stall Torque (12.6V) | 694.4 oz-in (50 kg.cm) |
| No-Load Current (6.0V) | 200 mA |
| No-Load Current (7.4V) | 220mA |
| No-Load Current (8.4V) | 250mA |
| No-Load Current (12.6V) | 350mA |
| Stall Current (6.0V) | 4,500 mA |
| Stall Current (7.4V) | 5,600 mA |
| Stall Current (8.4V) | 6,300 mA |
| Stall Current (12.6V) | 9,500 mA |
| Deadband Width | 3-5 μsec |
| Pulse Amplitude | 3.3V-5V |
| Max PWM Range | 650 -2350µsec |
| Gear Material | Steel |
| Wire Length | ~11.81" (300mm) |
| Internal Feedback Style | Potentiometer |
| Output Shaft Support | Ball Bearing |
| Wire Gauge | 22AWG |

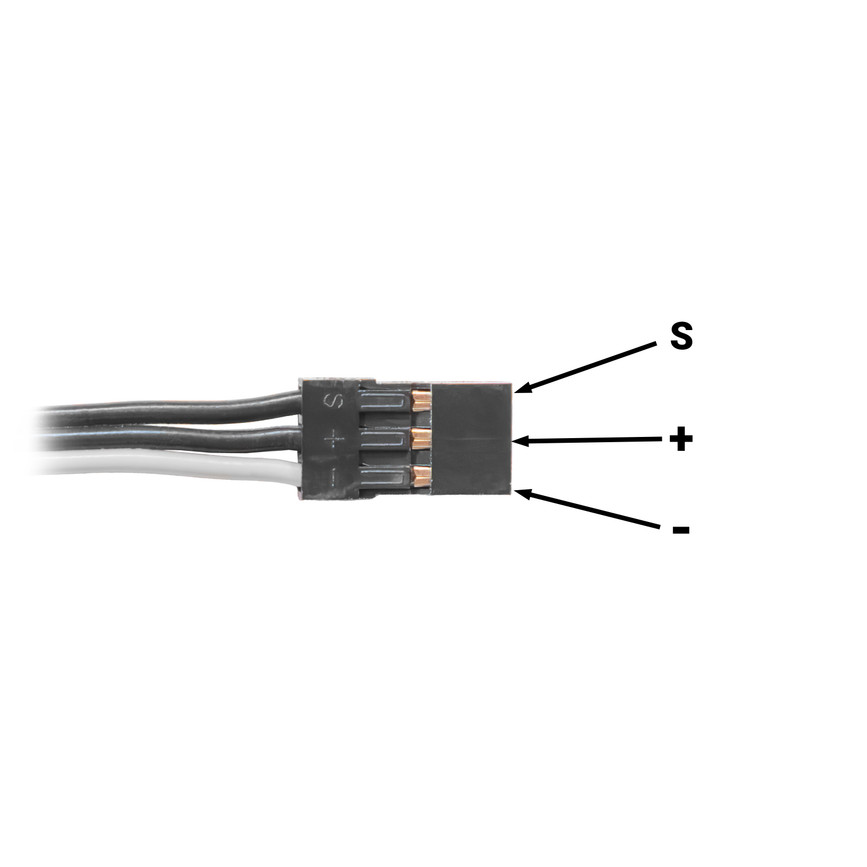

| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Servo Size | Low Profile |
| Direction with Increasing PWM Signal | Counterclockwise |
| Travel per μsec | 0.10°/µsec |
| Max Rotation | 170° |
| Motor Type | Brushless DC |
