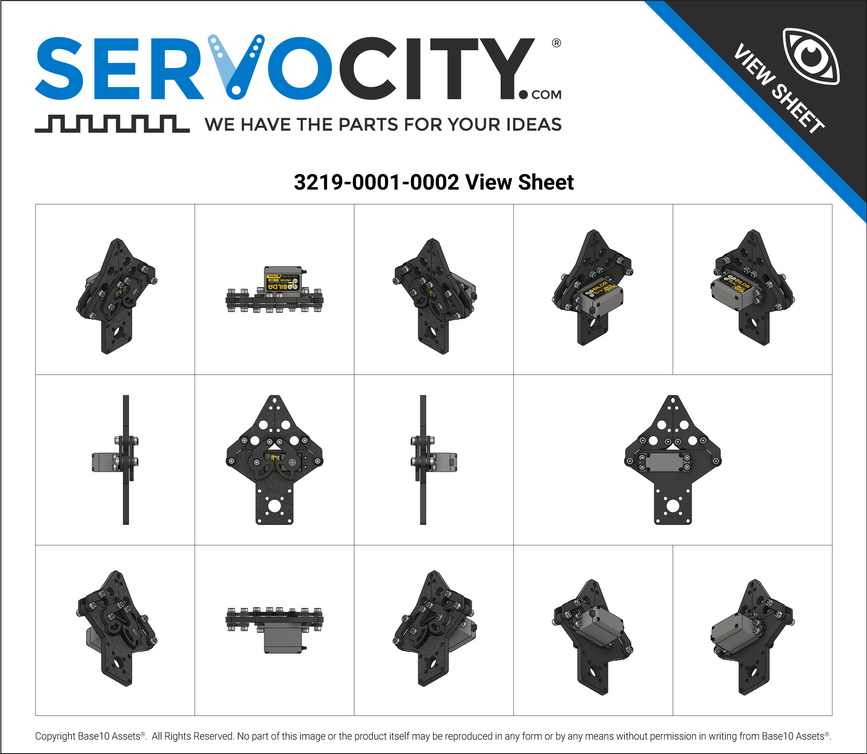

Servo-Driven Parallel Gripper Kit (Servo Included)
SKU:
$34.99

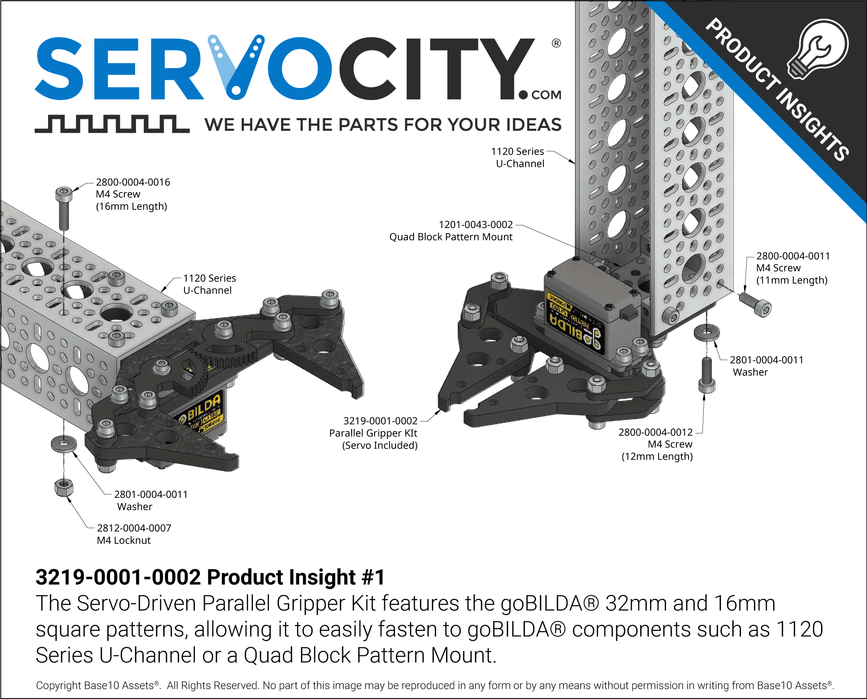

This gripper kit has jaws that remain parallel to one another throughout their range thanks to the unique gears and linkages. The goBILDA® 16mm square pattern thru-holes and 14mm diameter center hole on the rear of the gripper kit allow you to fasten the kit to a smorgasbord of structure within the goBILDA® ecosystem. The kit is driven by the included Proton Torque Servo.
Tools Required:
- 2.5mm Hex Key (L-Key or T-Handle)
- 3mm Hex Key (L-Key or T-Handle)
- 7mm Nut Driver
Kit Contents:
| QTY | SKU | Name |
|---|---|---|
| 4 | 1131-0032-0007 | 3.2mm Acetal Plastic Linkage for 3219-0001-0002 |
| 2 | 1131-0032-0008 | 3.2mm Acetal Plastic Servo Spacer for 3219-0001-0002 |
| 1 | 1131-0160-0068 | 6.0mm ABS Plastic Servo Mount for 3219-0001-0002 |
| 1 | 1131-0160-0069 | 6.0mm ABS Plastic Left Gripper for 3219-0001-0002 |
| 1 | 1131-0160-0070 | 6.0mm ABS Plastic Right Gripper for 3219-0001-0002 |
| 1 | 1131-0040-0002 | 4.0mm Acetal Plastic Servo Gear for 3219-0001-0002 |
| 1 | 1131-0040-0003 | 4.0mm Acetal Plastic Driven Gear for 3219-0001-0002 |
| 5 | 2800-0004-0012 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length) |
| 2 | 2800-0004-0018 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length) |
| 4 | 2800-0004-0020 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 20mm Length) |
| 1 | 2801-0003-0008 | 3mm ID x 8mm OD Zinc-Plated Washer |
| 25 | 2801-0004-0008 | 2801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD) - 25 Pack |
| 6 | 2812-0004-0007 | 2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) |
| 1 | 2002-0180-0002 | Proton Servo (Steel Gears, 180° Rotation, Torque Ratio) |
Downloads
Specs
| Weight | 133g (with Servo) |
|---|---|
| Servo Included | 2002-0180-0002 |
Related Products:
These products have been hand curated by our R&D team. We have selected products that are directly compatible with or very relevant to the 3219-0001-0002.
