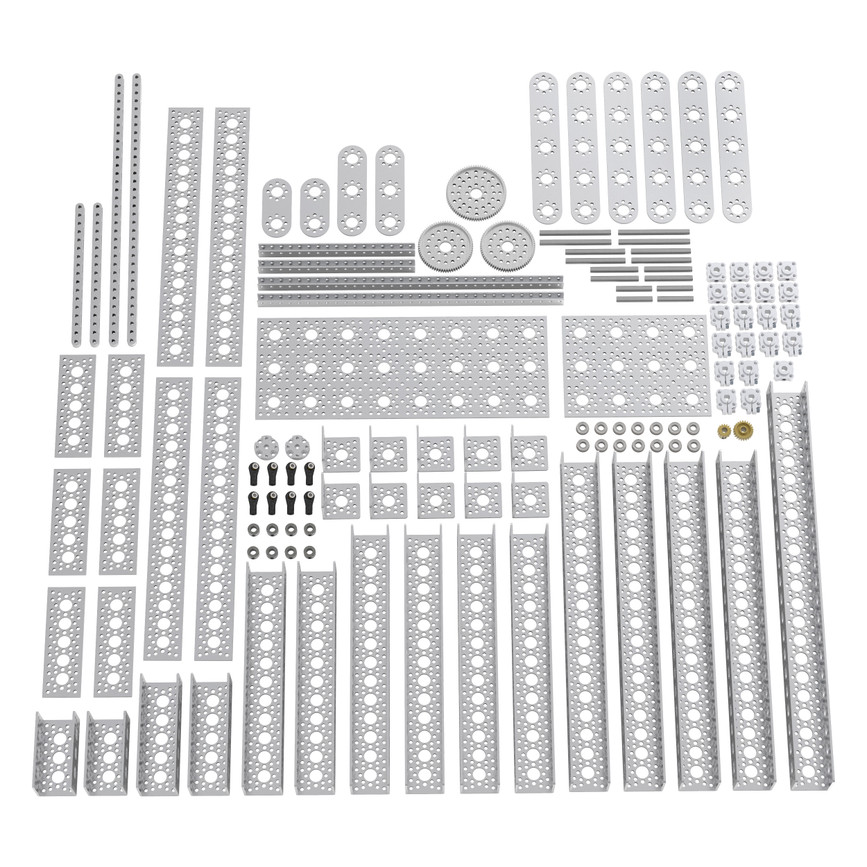

World Robotics League Expansion Kit
SKU:
Build System: Actobotics
DISCONTINUED This product has been discontinued.
$527.99
Introducing the all new World Robotics League Expansion Kit! This kit is ideal for expanding off the WRL Actobotics Base Kit. Be sure to apply for your team discount! For your convenience, we also accept school purchase orders from approved applicants.
| Game Expansion Kit Parts List | ||
| Part Number | Qty | Description |
| 585392 | 2 | 6.16” Mini Aluminum Channel |
| 585399 | 2 | 12.32” Mini Aluminum Channel |
| 585416 | 2 | 6.16" (17 hole) Aluminum Beam |
| 585423 | 2 | 12.32" (33 hole) Aluminum Beam |
| 585442 | 2 | 3.00” Aluminum Channel |
| 585444 | 2 | 4.50” Aluminum Channel |
| 585450 | 2 | 9.00” Aluminum Channel |
| 585452 | 4 | 10.50” Aluminum Channel |
| 585456 | 4 | 13.50” Aluminum Channel |
| 585460 | 1 | 16.50” Aluminum Channel |
| 585424 | 10 | 90° Single Angle Pattern Bracket |
| 585722 | 6 | 4.5” x 1.5” Pattern Plate (5 hole) |
| 585728 | 4 | 12” x 1.5” Pattern Plate (15 hole) |
| 585002 | 1 | 4.5” x 6” Aluminum Pattern Plate |
| 585004 | 1 | 4.5” x 12” Aluminum Pattern Plate |
| 525130 | 2 | Actobotics Standard Hub Horn |
| 585433 | 8 | 6-32 Ball Linkage |
| 585586 | 2 | Flat 0.770" Pattern Bracket C |
| 585588 | 2 | Flat 0.770" Bracket D |
| 585592 | 6 | Flat 0.770" Pattern Bracket F |
| 625302 | 8 | 0.250" Bore Steel Set-Screw Collar |
| 575148 | 2 | Standard Servo Plate D |
| 545619 | 8 | 6mm bore Clamping D-Hubs (Tapped), 0.770" Pattern |
| 545578 | 1 | 0.250" Bore Clamping D-Hub (Tapped), 0.770" Pattern |
| 545579 | 8 | 6mm Bore Set Screw D-Hub (Tapped), 0.770" Pattern |
| 634064 | 4 | 0.250" x 1.50" Stainless Steel D-Shaft |
| 634068 | 4 | 0.250" x 2.0" Stainless Steel D-Shaft |
| 634074 | 4 | 0.250" x 2.50" Stainless Steel D-Shaft |
| 634078 | 4 | 0.250" x 3.00" Stainless Steel D-Shaft |
| 535198 | 14 | 1/4" ID x 1/2" OD Flanged Ball Bearing |
| 615198 | 2 | 72 Tooth, 32 Pitch (.50" Bore) Aluminum Hub Gear |
| 615206 | 1 | 80 Tooth, 32 Pitch (.50" Bore) Aluminum Hub Gear |
| 615258 | 1 | 16T, 32P, 6mm Bore Shaft Mount Pinion Gear |
| 615266 | 1 | 24T, 32P, 6mm Bore Shaft Mount Pinion Gear |
