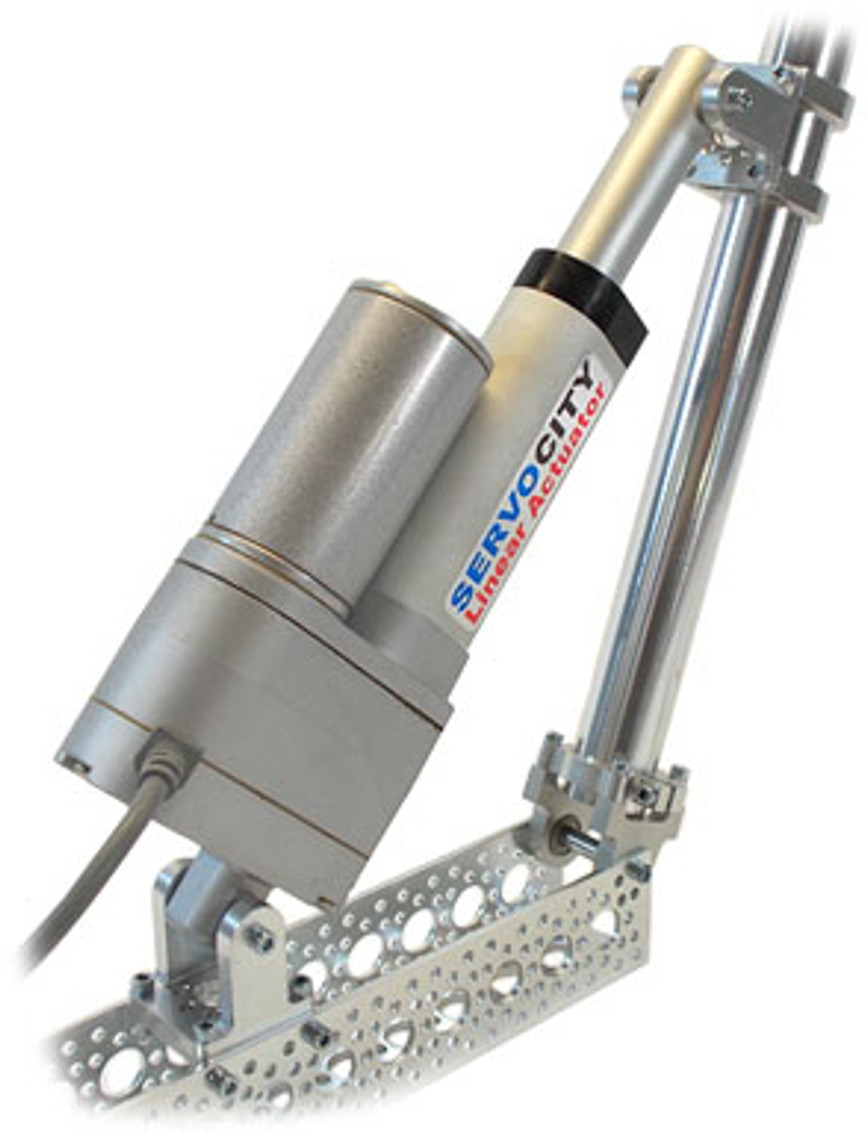

12V Heavy-Duty Linear Actuator (225lb Thrust, 0.3"/sec, 10" Stroke)

SKU:
$129.99

Currently Sold Out


Heavy Duty Actuator Schematic

X = Center to Center

Stroke

Retracted

Extended

9.94”

15.71”

25.65”

30-1 gear ratio (HDA) tableActuator Potentiometer Wire Schematic

Feedback Wiring Schematic:
White - 10K Pot Reference
Blue - 10K Pot Wiper (Position Signal)
Yellow - 10K Pot Reference

Tech Tips:

Specs

Stroke 10"
Operating Temperature -26°C ~ +65°C
Motor Type 3 Pole Ferrite
Feedback Style 10KΩ Potentiometer
Gear Material Metal Gear Train, Nylon Pinion
Wire Length 24"
Weight 47.9 oz
Voltage Range (Recommended) 6V - 12V
Speed (No Load)* 0.30” per second
Gearbox Style Straight Cut Spur
Gear Ratio 30:1
Speed (Max Load)* 0.20” per second
Dynamic Thrust* 225 lbs
Static Load 500 lbs
Current Drain (No-Load)* 600mA
Current Drain (Max Load)* 3.8A
Current Drain (Stall)* 15A
Potentiometer Tolerance ± 5%
Feedback Density 1KΩ / inch
IP Rating IP54
Duty Cycle 25% (25% on, 75% off)
Lead Screw Type 3mm pitch, single thread
Potentiometer Linearity ± 0.25%
Previous SKU HDA10-30
