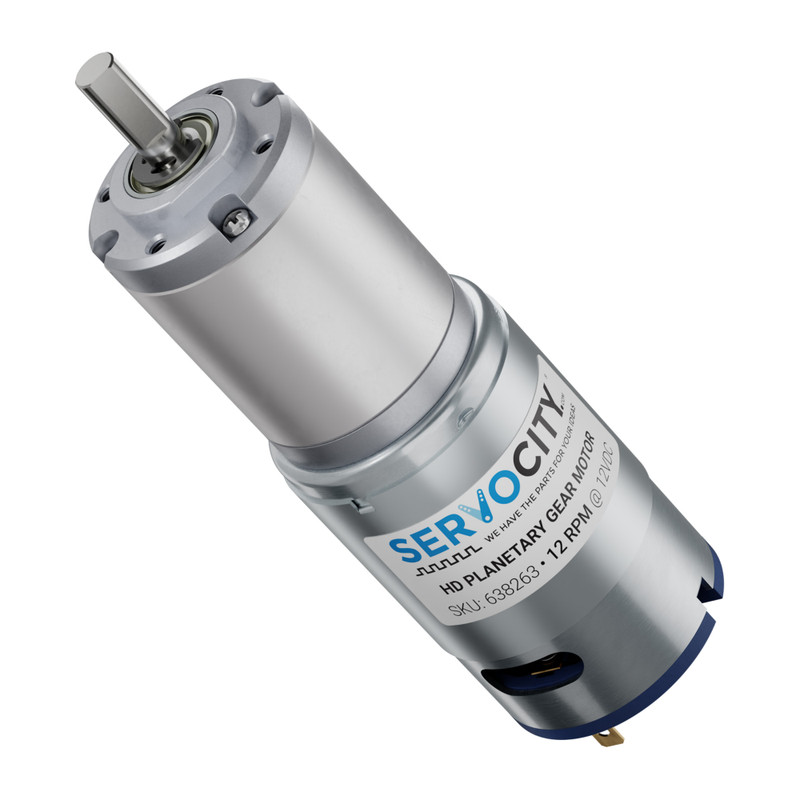

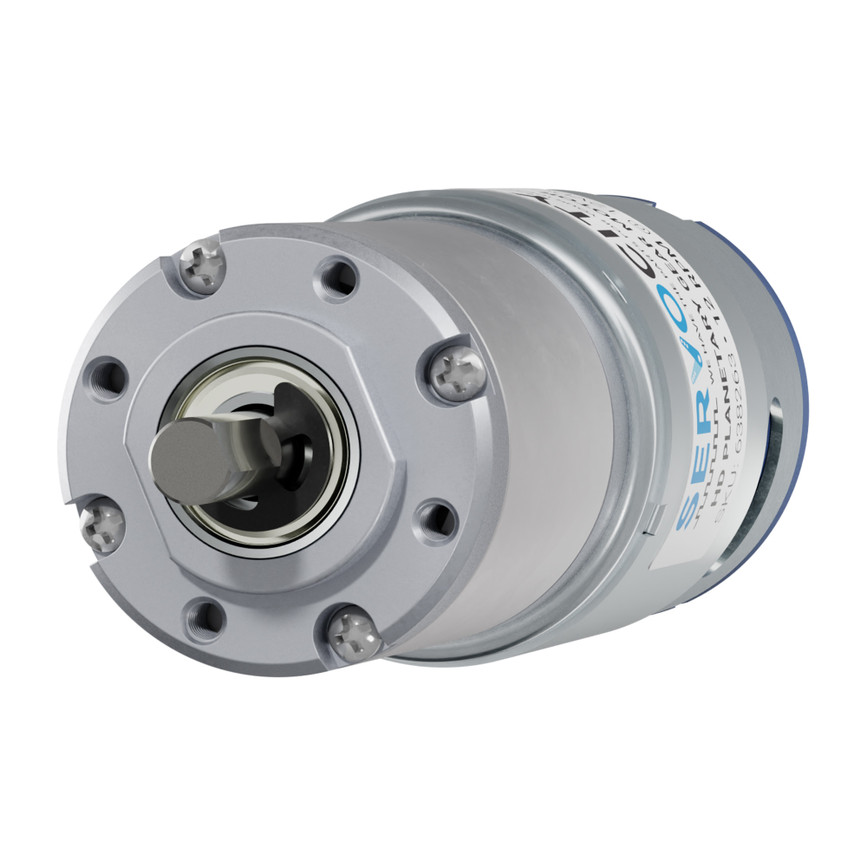

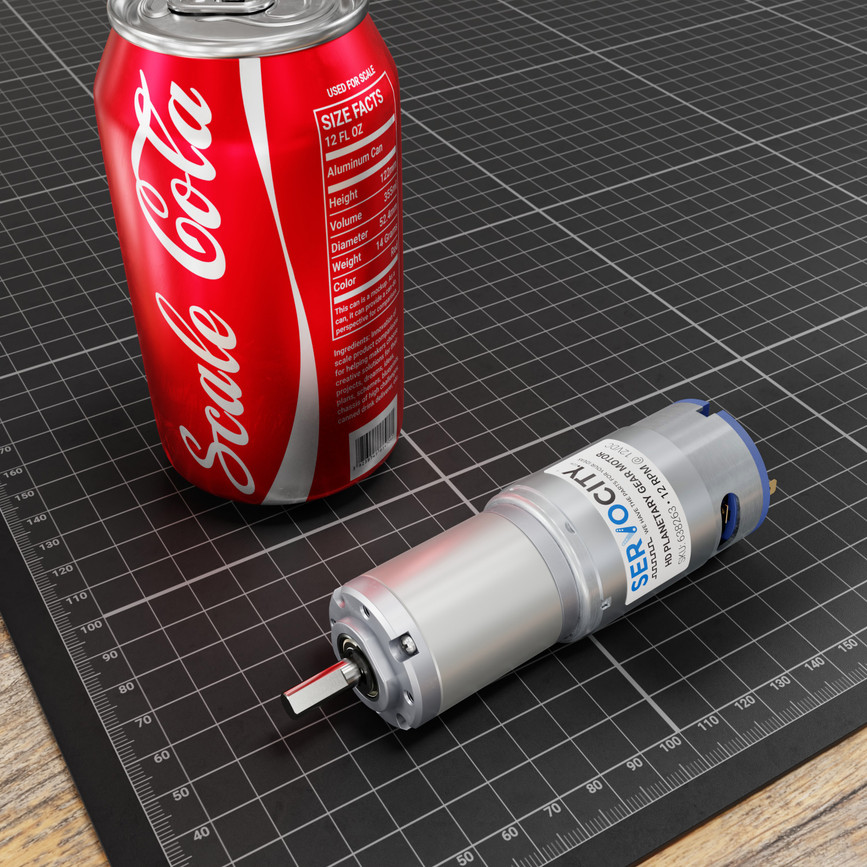

12 RPM HD Premium Planetary Gear Motor

  • Shown mounted to the end of channel using Motor Mount E
  • Use with Planetary Mount B (threaded) or Planetary Mount C (thru-hole)
  • Shown with Gear Motor Power Input Board D
  • Shown mounted to a wheel

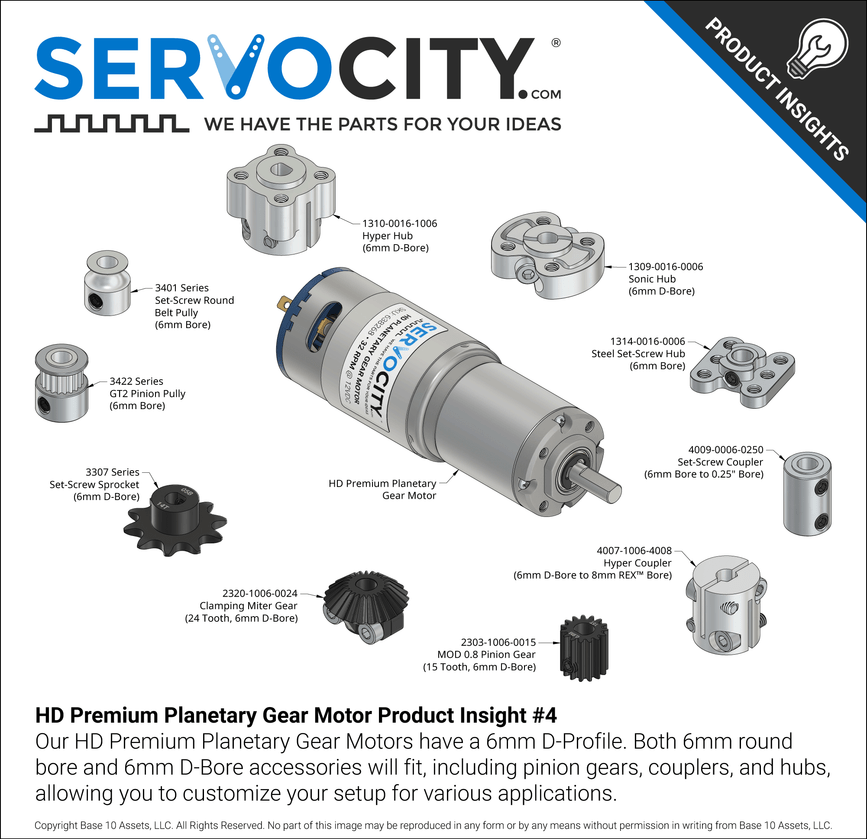

  • Compatible with 6mm pinion gears
  • Shown mounted in channel with Planetary Mount C (thru-hole) and a Large Square Screw Plate
  • Shown with Motor Mount E
  • Shown with the 32mm Bore Clamping Motor Mount
  • Compatible with our 6mm bore Shaft Couplers
  • Compatible with our 6mm bore Set Screw Couplers
  • Shown mounted in channel with Planetary Mount C (thru-hole)
  • Shown with Motor Mount E
  • Shown mounted to the end of a 1” aluminum tube using a 1” Tube Clamp and Planetary Motor Mount
1 of 14

Be the first to review this product

Part
638263
638263
Status
In stock
This Product? Share It!
SPECS

638263

Gear train damage can occur if stalled (locked).

*At Nominal Voltage

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Speed (No Load)* 12 rpm
Current (No Load)* 0.54A
Current (Stall)* 20A
Torque (Stall)* 8,110.2 oz-in (584 kgf-cm)
Gear Ratio 721:1
Gear Material brass primary, nylon secondary, steel tertiary
Gearbox Style Planetary
Motor Type DC
Motor Brush Type Graphite
Output Shaft Diameter 6mm (0.236”)
Output Shaft Style D-shaft
Output Shaft Support Dual Ball Bearings
Operating Temperature -10°C ~ +60°C
Mounting Screw Size M3 x 0.5mm
Product Weight 380g (13.4oz)
