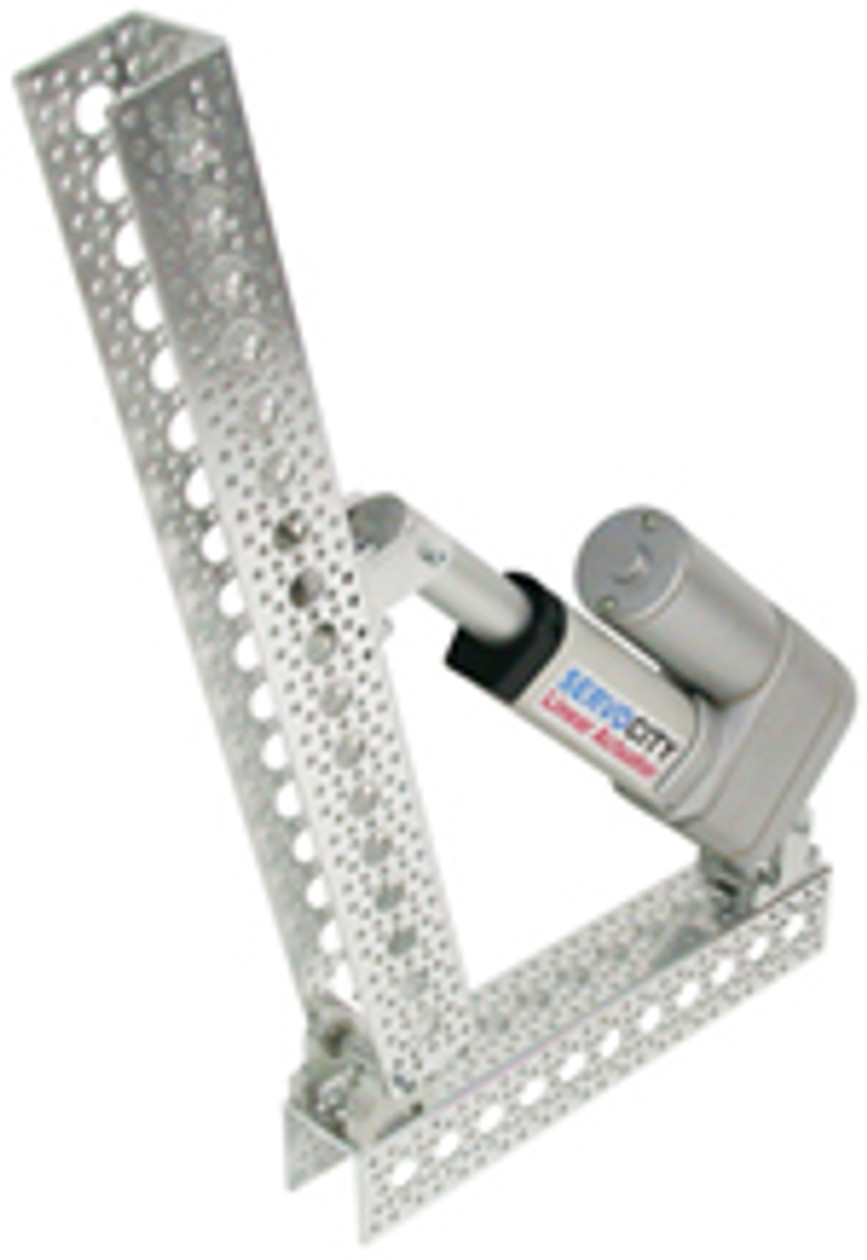

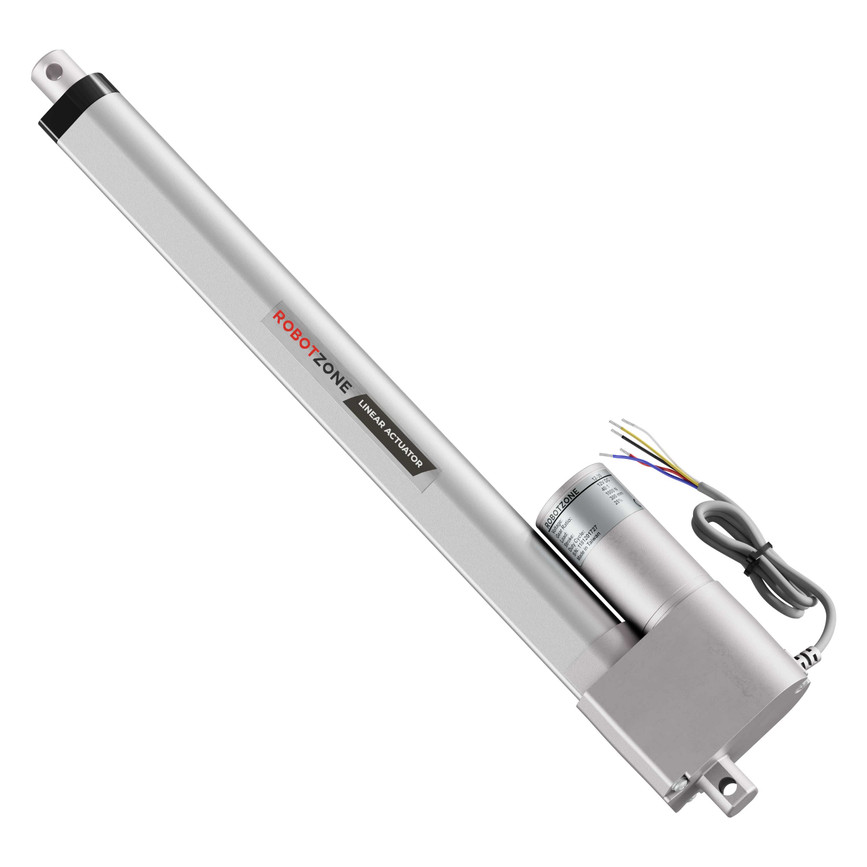

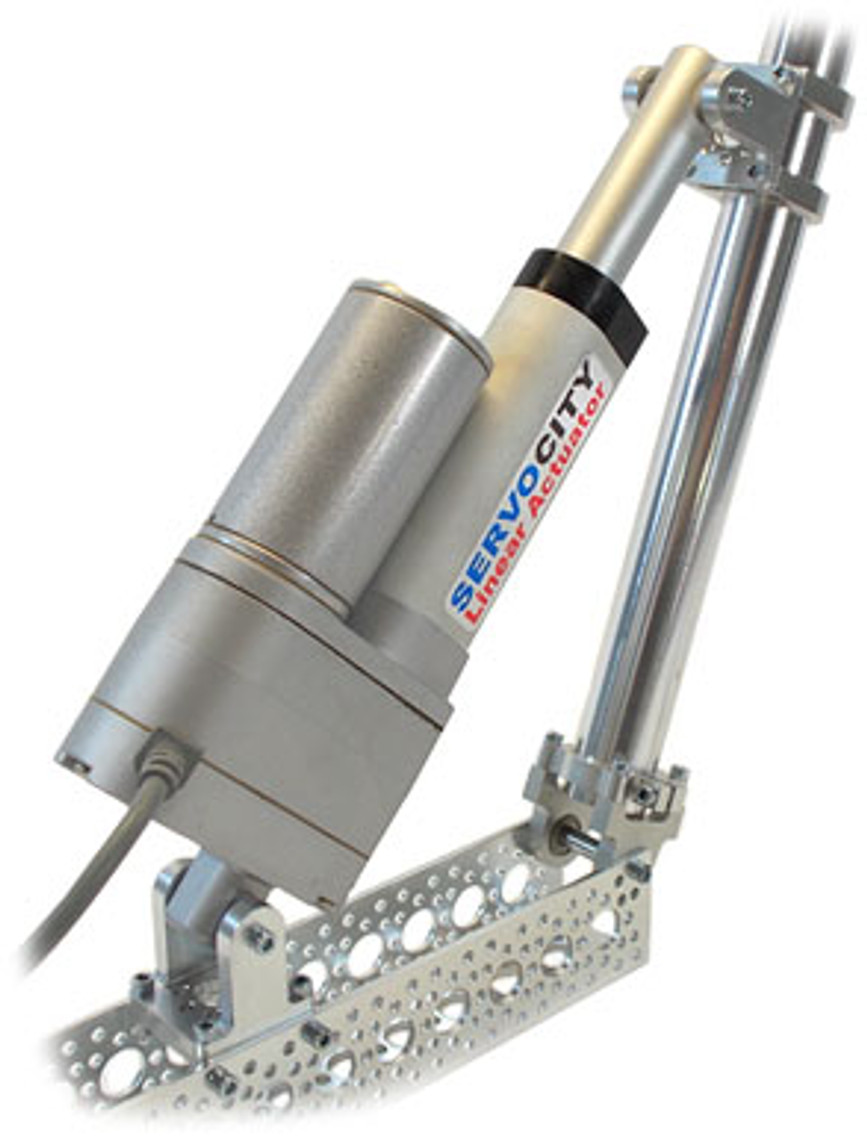

12" Stroke 180 lb Thrust Heavy Duty Linear Actuator
SKU:
$129.99
 |
| |||||||||
  | Feedback Wiring Schematic: | |||||||||
Tech Tips:
Downloads
Specs
| Stroke | 12" |
|---|---|
| Operating Temperature | -26°C ~ +65°C |
| Motor Type | 3 Pole Ferrite |
| Feedback Style | 10KΩ Potentiometer |
| Gear Material | Metal Gear Train, Nylon Pinion |
| Wire Length | 24" |
| Weight | 50.4 oz |
| Voltage Range (Recommended) | 6V - 12V |
| Speed (No Load)* | 0.30” per second |
| Gearbox Style | Straight Cut Spur |
| Gear Ratio | 30:1 |
| Speed (Max Load)* | 0.20” per second |
| Dynamic Thrust* | 180 lbs |
| Static Load | 500 lbs |
| Current Drain (No-Load)* | 600mA |
| Current Drain (Max Load)* | 3.8A |
| Current Drain (Stall)* | 15A |
| Potentiometer Tolerance | ± 5% |
| Feedback Density | 0.83KΩ / inch |
| IP Rating | IP54 |
| Duty Cycle | 25% (25% on, 75% off) |
| Lead Screw Type | 3mm pitch, single thread |
| Potentiometer Linearity | ± 0.25% |
