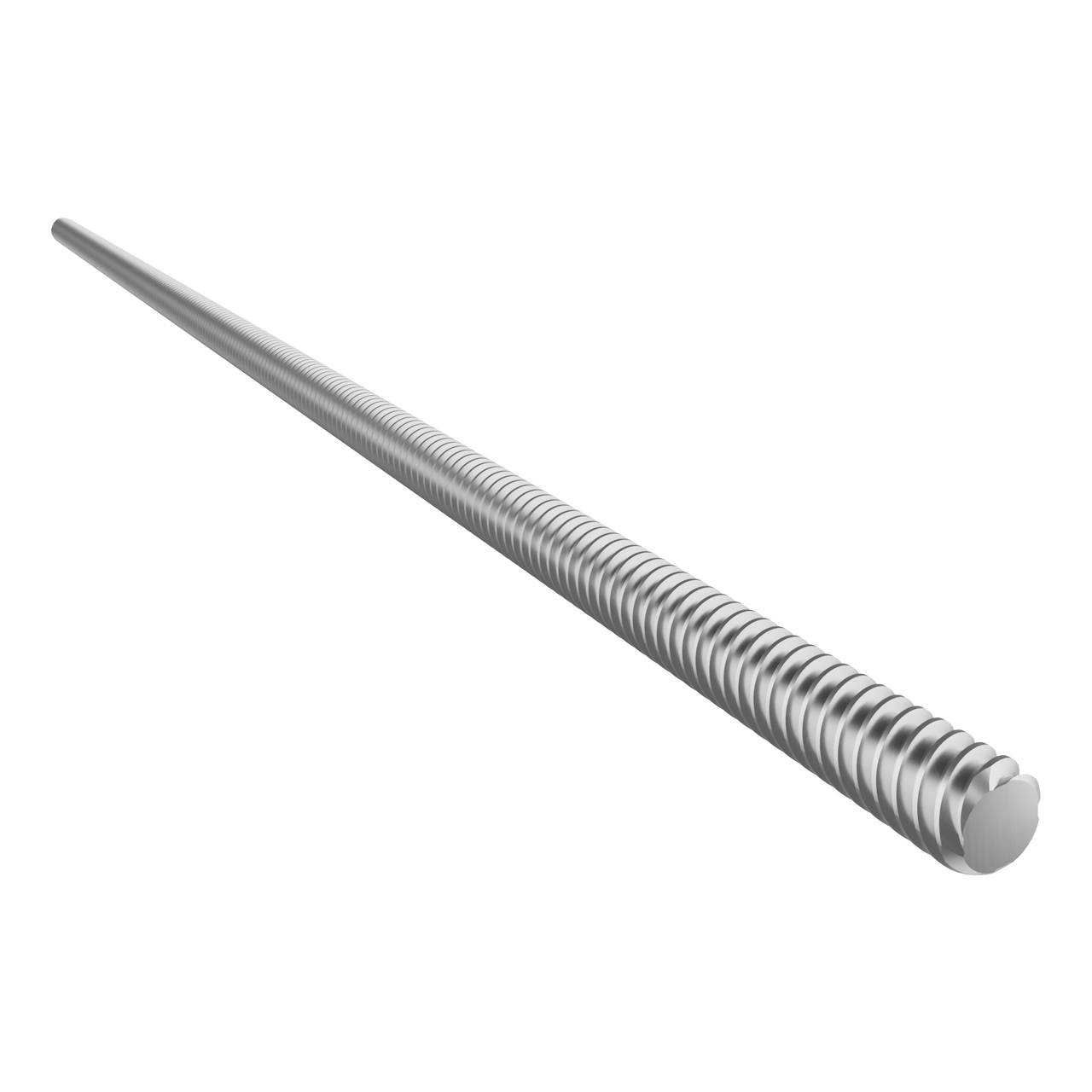

3501 Series Lead Screw (8mm Lead, 4 Start, 400mm Length)

SKU:
$10.99

Downloads

Specs

Length 400mm
Weight 121g
Material Stainless Steel
Pitch 2mm
# Starts 4
Lead Diameter 8mm
