Linear Actuator Kit B (10" Stroke, 3/8" OD Piston)

1 of 6

Be the first to review this product

Part
637215
637215
Status
In stock
This Product? Share It!

Details

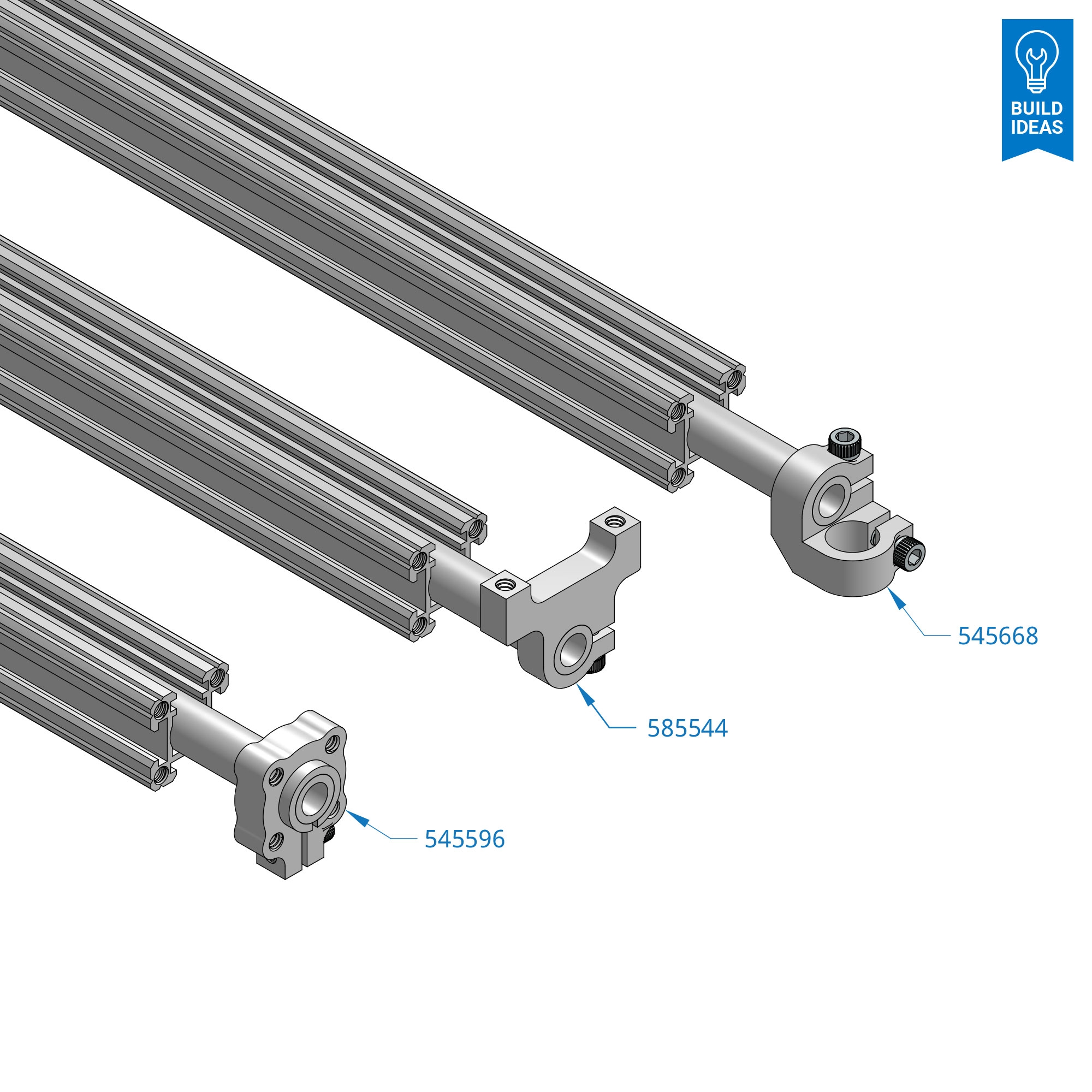

This linear actuator kit utilizes Open X-Rail  as the framework to maintain a slim profile while offering numerous mounting possibilities.  The 3/8" aluminum extension tube is driven by a 6mm, 6 start lead screw that yields 8mm (0.315") of travel per rotation.  We offer a variety of 3/8" clamping components which will allow you to fasten something to the piston that's driven in and out of the Open X-Rail by the lead screw..  The kit does not come with drive gears or a motor so that you can tailor the speed and linear thrust to your specific application.

Please check out the TECH TIPS tab below for suggestions on the various drive options we offer.

SPECS

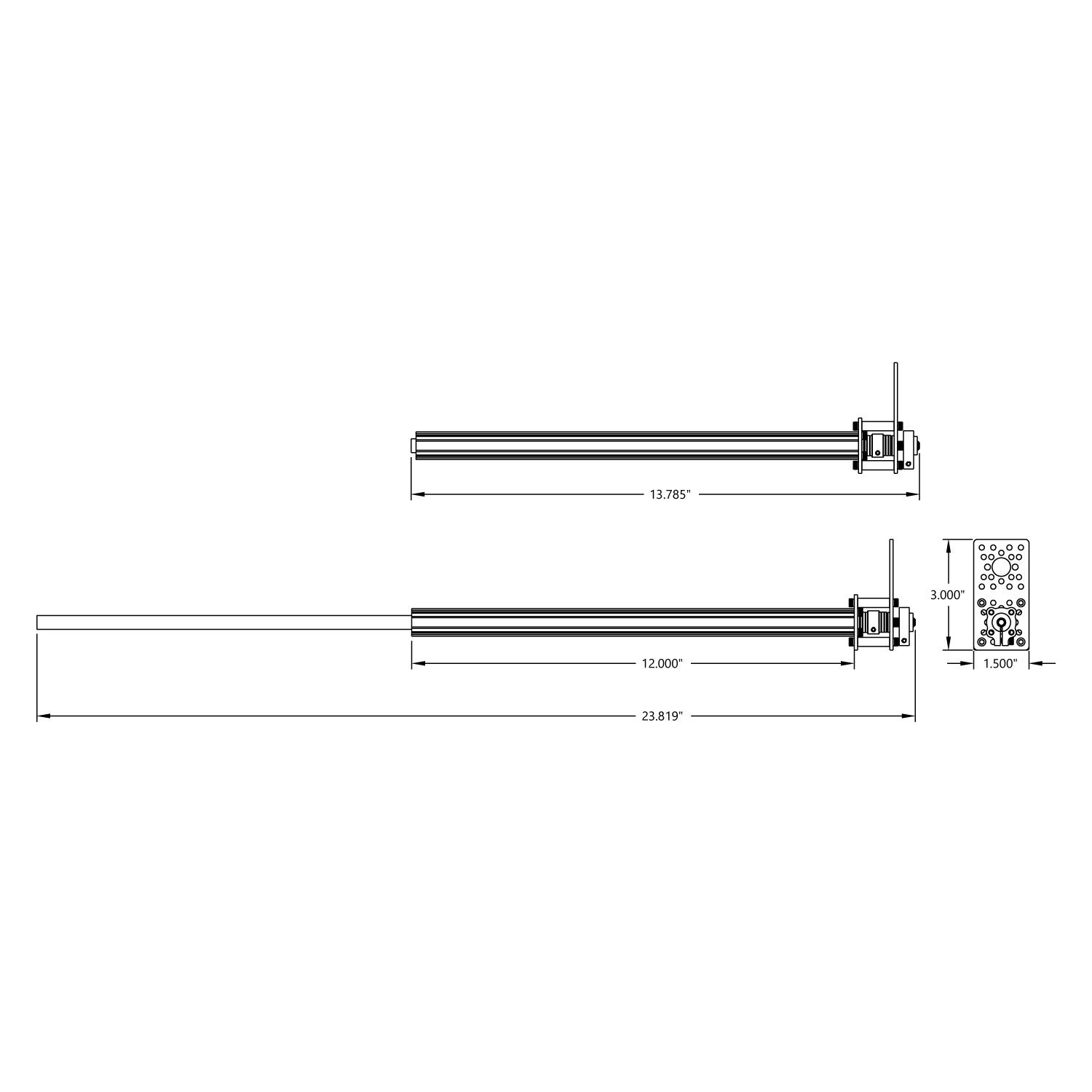

637215 Schematic

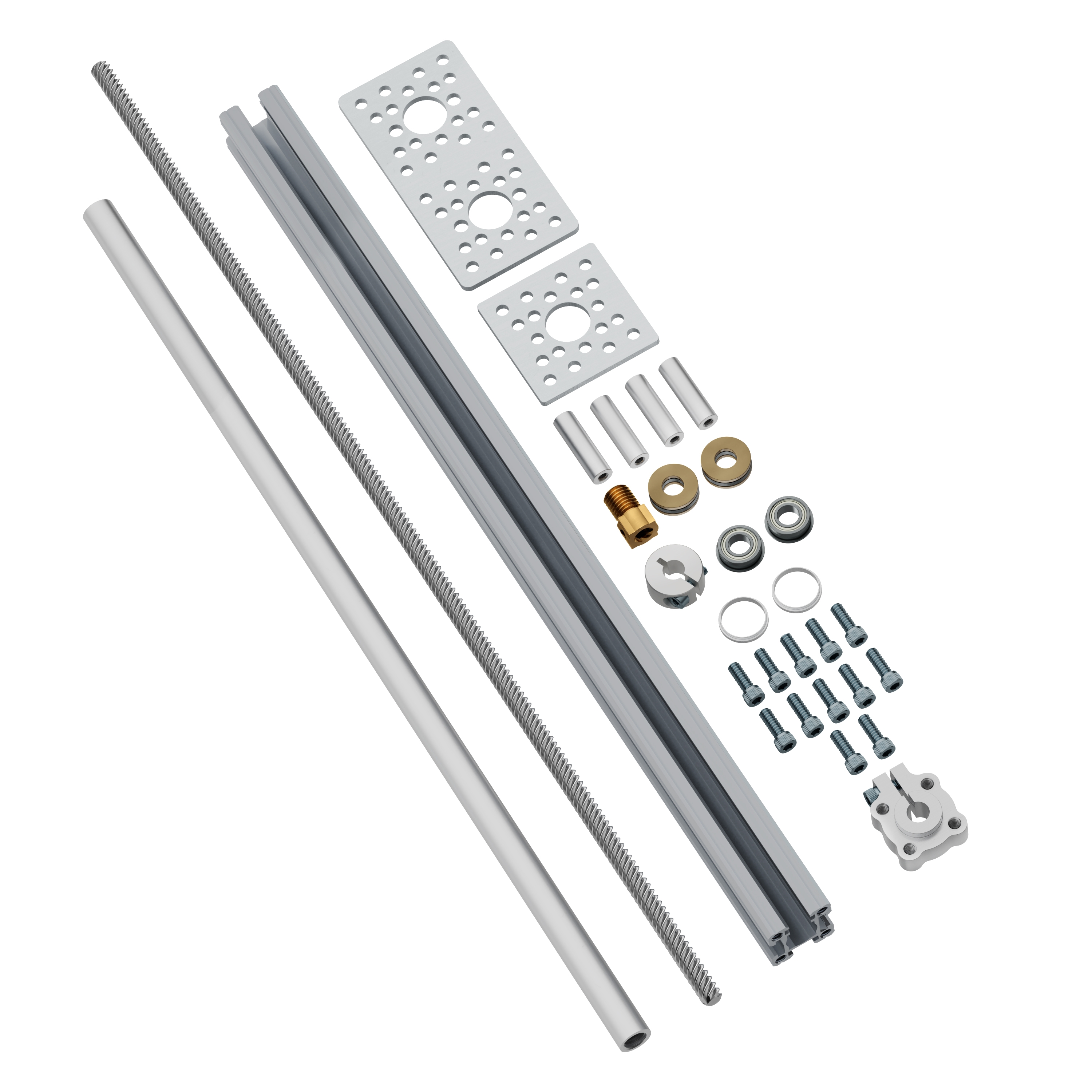

Kit Includes:

Qty SKU Product Description
1 565122 12.00" Open X-Rail
12 3501-0606-0350 13.8" (350mm) 6mm Lead Screw
13 635008 3/8" OD Tube for 6mm Lead Screw Square Nut
14 585422 Flat Dual Pattern Bracket
1 585468 Flat Single Pattern Bracket
4 633128 6-32 Thread, 1/4" OD, 0.875" (7/8") Length Round Aluminum Standoff
1 545306 6mm Lead Screw Square Nut
2 6655K52 6mm Bore Thrust Bearing
1 2910-0816-0006 2910 Series Aluminum Clamping Collar (6mm ID x 16mm OD, 8mm Length)
2 535220 6mm ID x 12mm OD Flanged Ball Bearing
2 633142 1/2" - 12mm Hole Reducer (4 pack)
12 632110 6-32 Zinc-Plated Socket Head Machine Screws
1 545616 6mm Face Tapped Clamping Hubs, 0.770" Pattern
Product Weight 8.53oz (242g)
RESOURCES
TECH TIPS

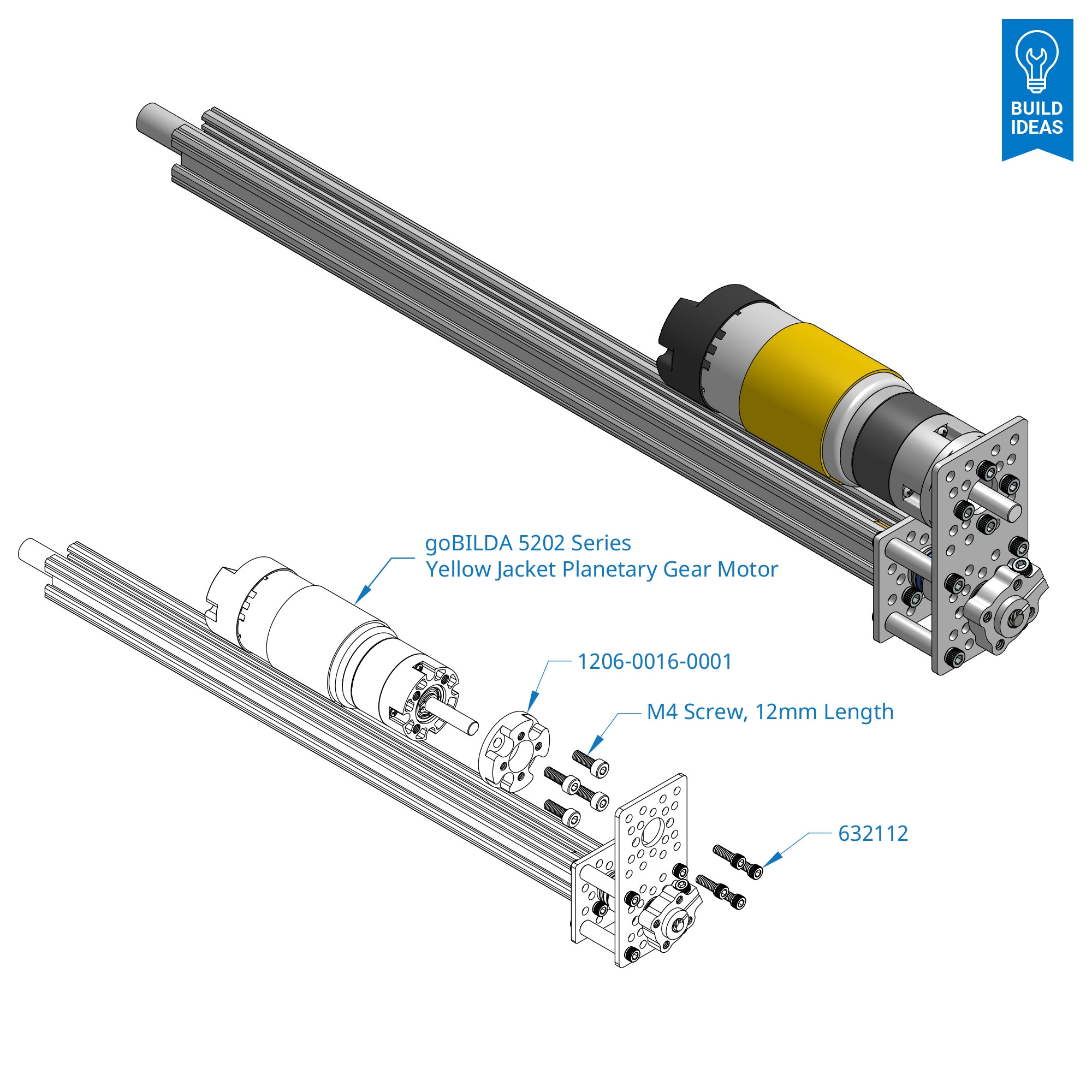

This kit does not include a motor, or gears to drive the lead screw. This makes it very customizable. The tables below assume you are using a motor with a 6mm D-Shaft and show you what gears (or sprockets) will work together and what the resulting ratio will be.

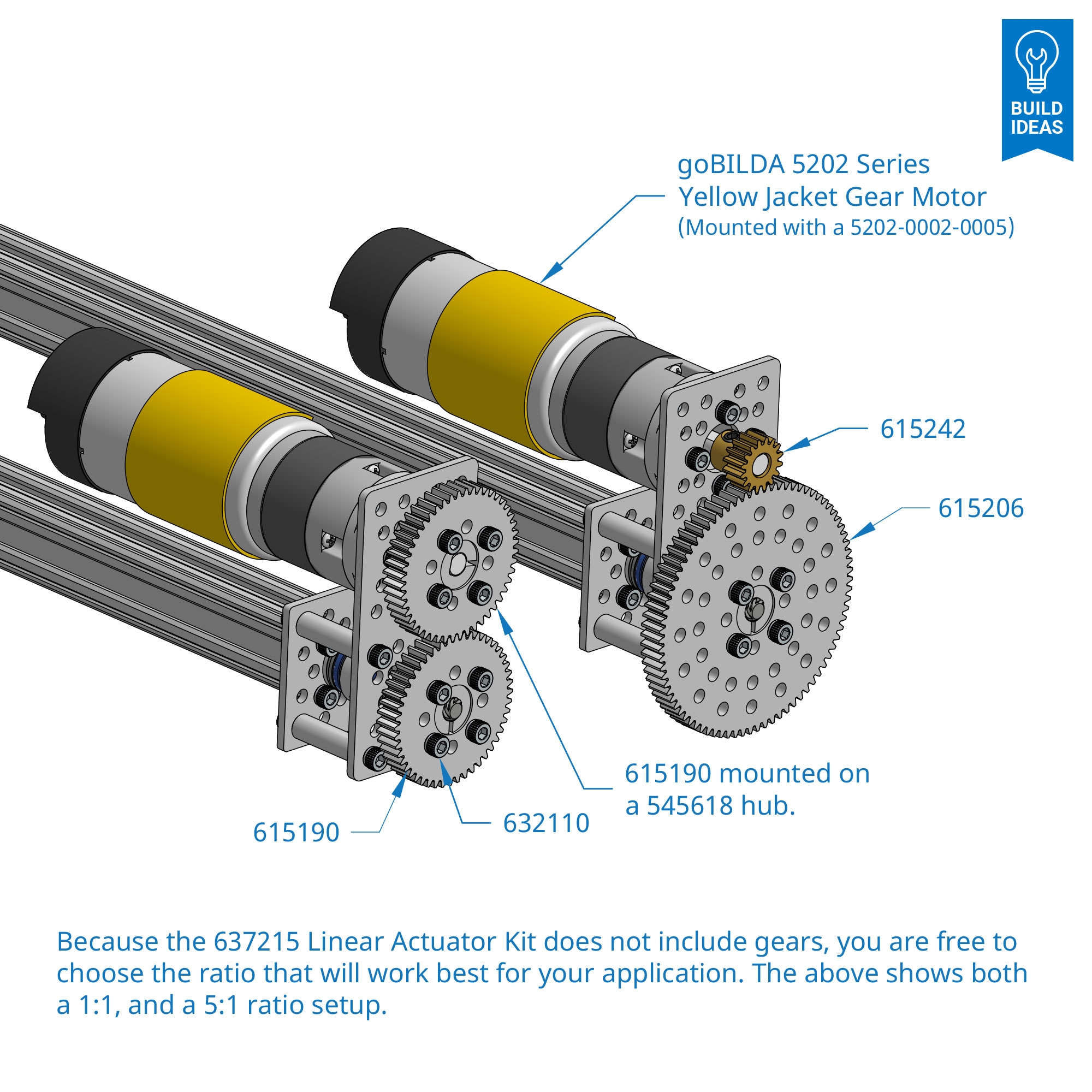

Using 32 Pitch Metal Gears:
RatioParts
1:1

48 Tooth Aluminum Hub Mount Gear: 615190 x 2
Clamping Hub, 6mm D-Bore: 545618

2:1

32 Tooth Brass Pinion Gear: 615254
64 Tooth Aluminum Hub Mount Gear: 615194

3:1

24 Tooth Brass Pinion Gear: 615250
72 Tooth Aluminum Hub Mount Gear: 615198

3.8:1

20 Tooth Brass Pinion Gear: 615246
76 Tooth Aluminum Hub Mount Gear: 615202

5:1 16 Tooth Brass Pinion Gear: 615242
80 Tooth Aluminum Hub Mount Gear: 615206



Using 32 Pitch Plastic Gears:
RatioParts
1:1

48 Tooth Plastic Hub Mount Gear: RHA32-36-48 x 2
Clamping Hub, 6mm D-Bore: 545618

1.09:1

46 Tooth Plastic Hub Mount Gear: RHA32-36-46
50 Tooth Plastic Hub Mount Gear: RHA32-36-50
Clamping Hub, 6mm D-Bore: 545618

1.19:1

44 Tooth Plastic Hub Mount Gear: RHA32-36-44
52 Tooth Plastic Hub Mount Gear: RHA32-36-52
0.125" Thick Hub Spacer: 545372 x 2
Clamping Hub, 6mm D-Bore: 545618

1.29:1

42 Tooth Plastic Hub Mount Gear: RHA32-36-42
54 Tooth Plastic Hub Mount Gear: RHA32-36-54
0.125" Thick Hub Spacer: 545372 x 2
Clamping Hub, 6mm D-Bore: 545618

1.4:1

40 Tooth Plastic Hub Mount Gear: RHA32-36-40
56 Tooth Plastic Hub Mount Gear: RHA32-36-56
0.125" Thick Hub Spacer: 545372 x 2
Clamping Hub, 6mm D-Bore: 545618

1.52:1

38 Tooth Plastic Hub Mount Gear: RHA32-36-38
58 Tooth Plastic Hub Mount Gear: RHA32-36-58
0.125" Thick Hub Spacer: 545372 x 2
Clamping Hub, 6mm D-Bore: 545618

1.67:1

36 Tooth Plastic Hub Mount Gear: RHA32-36-36
60 Tooth Plastic Hub Mount Gear: RHA32-36-60
0.125" Thick Hub Spacer: 545372 x 2
Clamping Hub, 6mm D-Bore: 545618

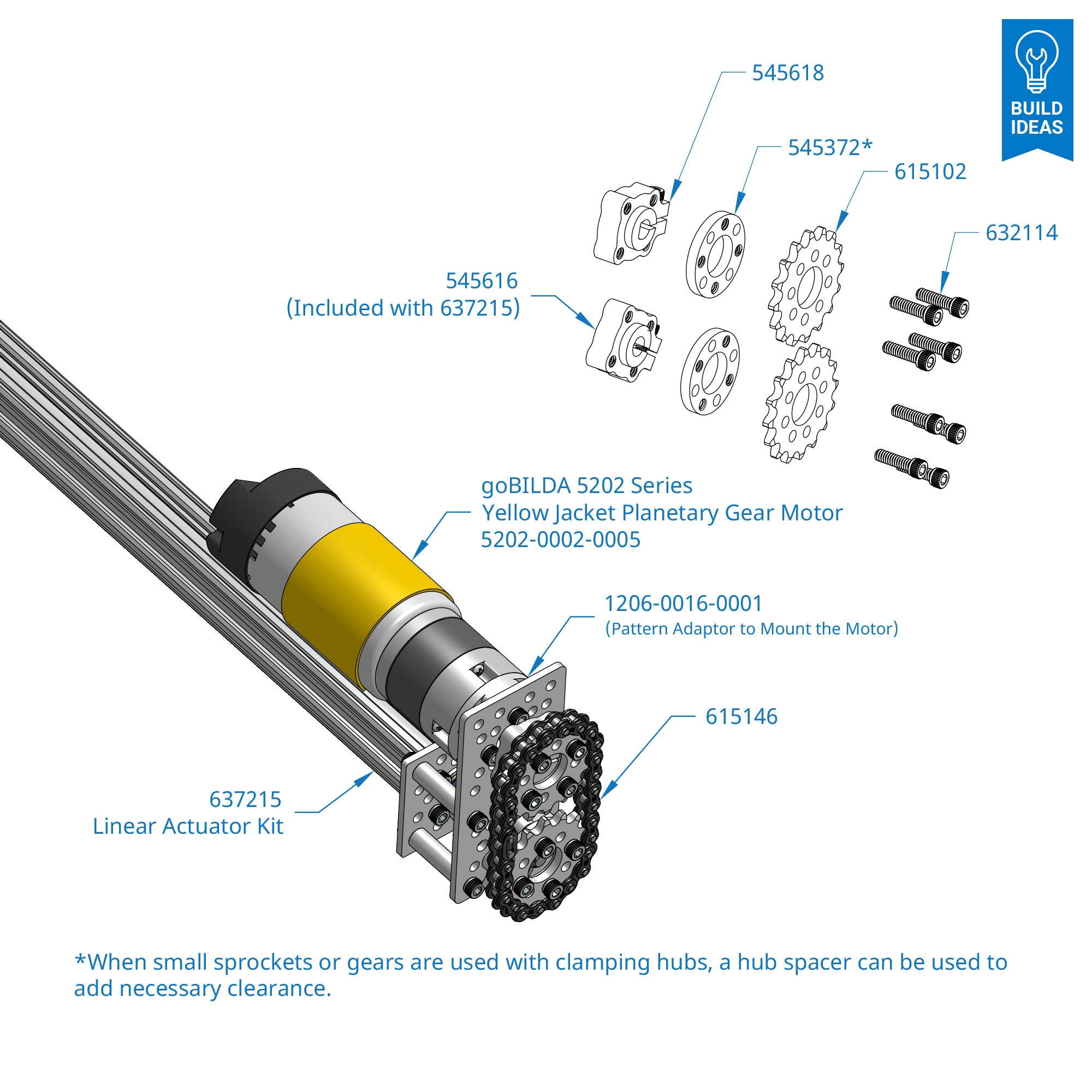

Using 0.25" Pitch Chain:
RatioParts
1:1 Metal

0.25" Pitch Steel Chain: 615146
16 Tooth Aluminum Hub Mount Sprocket: 615102 x 2
0.125" Thick Hub Spacer: 545372 x 2
Clamping Hub, 6mm D-Bore: 545618

1:1 Plastic

0.25" Pitch Plastic Chain: 615150
16 Tooth Acetyl Hub Mount Sprocket: RHS-250-16 x 2
0.125" Thick Hub Spacer: 545372 x 2
Clamping Hub, 6mm D-Bore: 545618
